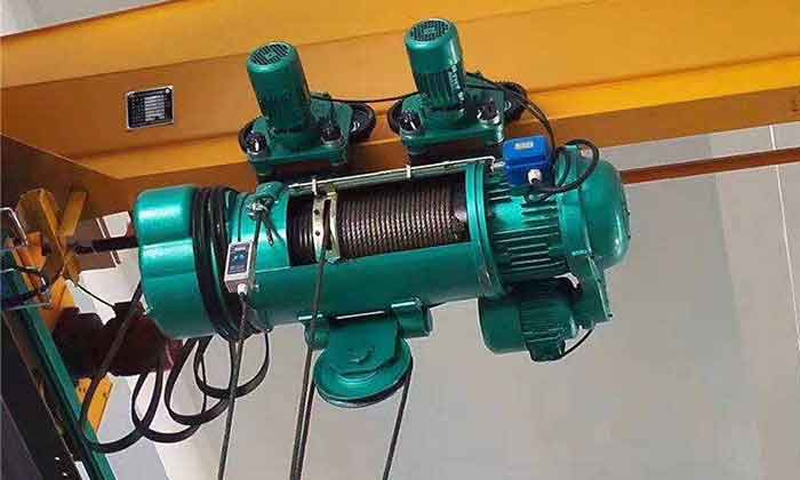

The 3-ton electric wire rope hoist is often installed on electric overhead cranes or portable gantry cranes, and is widely used in the logistics industry and production workshops.
The 3-ton electric wire rope hoist is a compact and easy-to-use lifting device. Nucleon electric hoists are typically installed as lifting devices on electric overhead cranes or mobile gantry cranes, or they can be used independently on sturdy I-beams or supports. These electric hoists are widely used in production workshops, warehouses, logistics sorting centers, and port terminals—places requiring cargo lifting and handling.

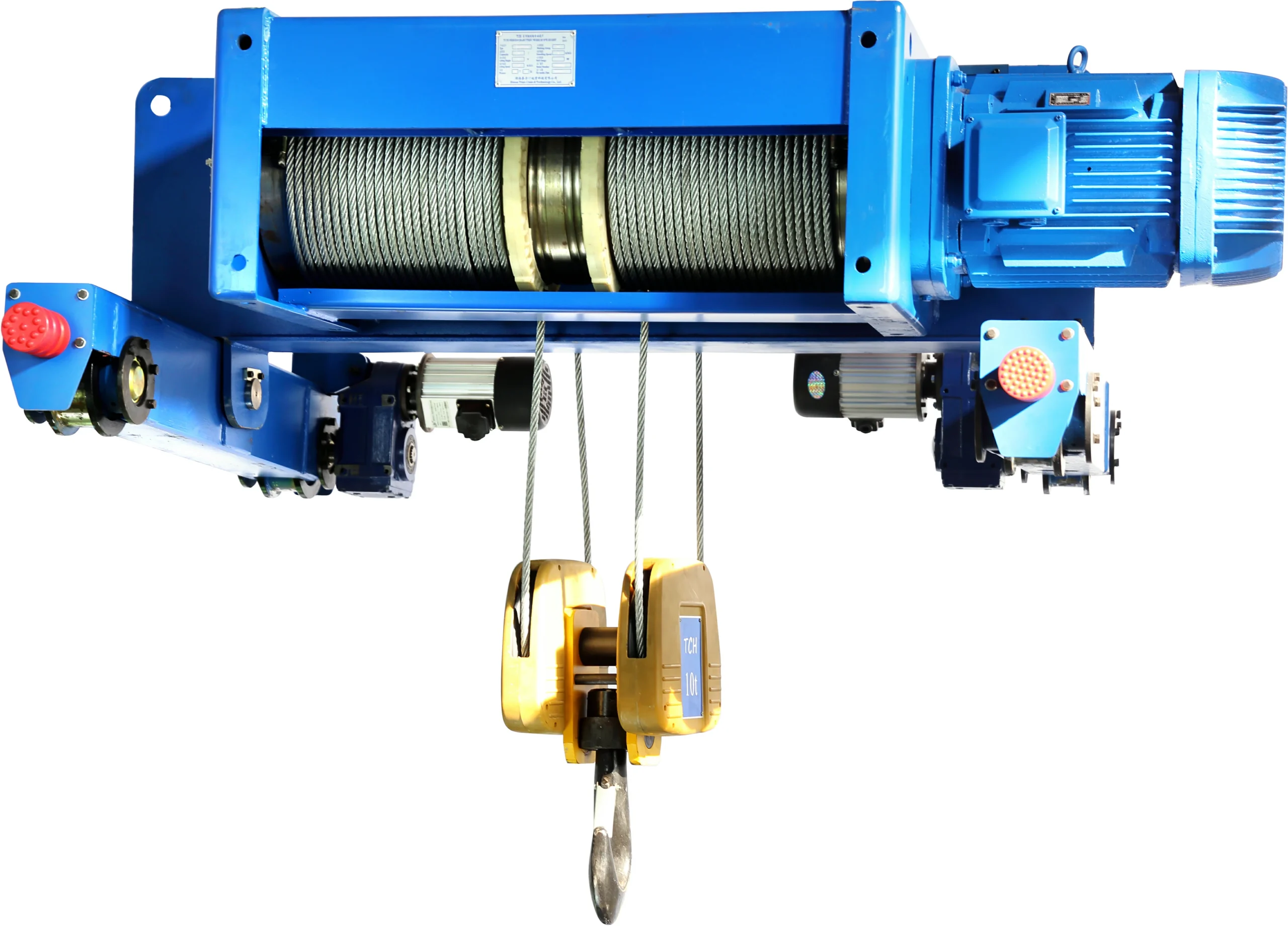

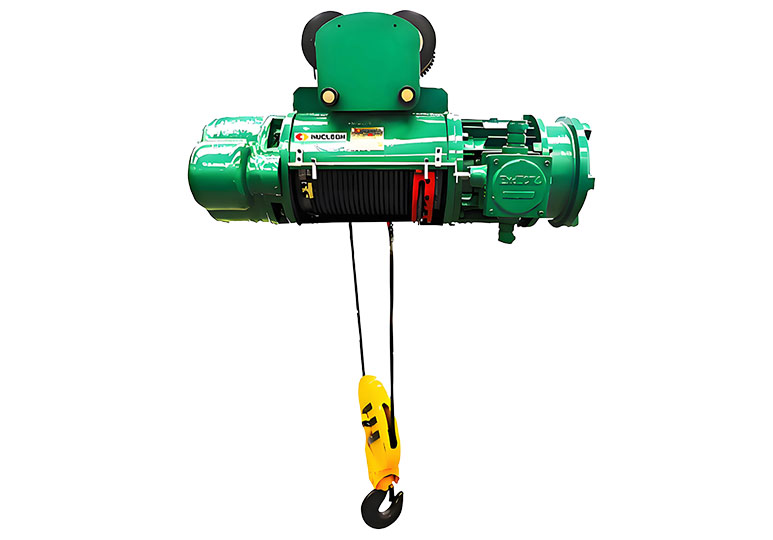

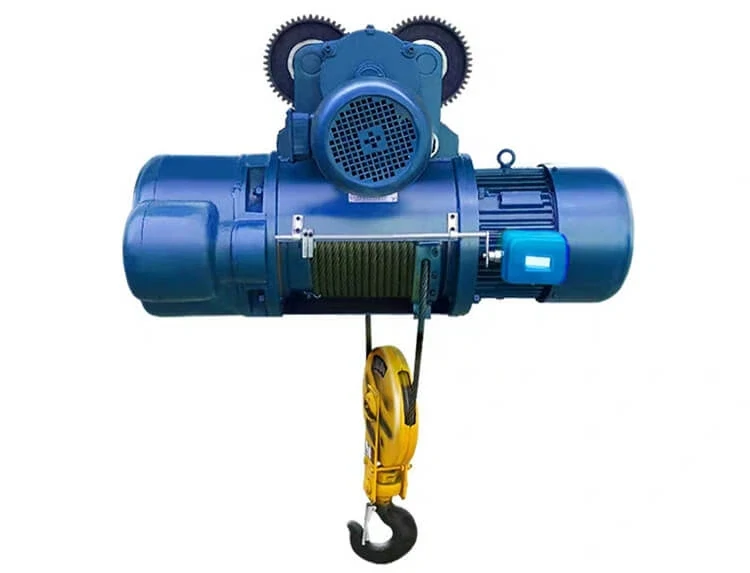

Nucleon produces a wide variety of 3-ton electric wire rope hoists to meet the needs of different working environments. These include the economical and practical standard CD1 electric hoist, the smooth-running MD1 dual-speed electric hoist, the space-saving low-headroom electric hoist, and the European electric hoist suitable for high-frequency use. Each model has its own characteristics and applicable scenarios.
Nucleon offers a variety of models to choose from, well-suited to the requirements of different industries.

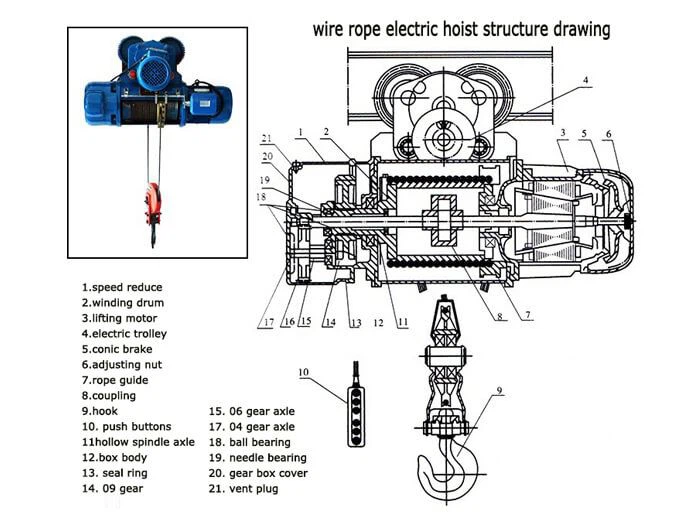

• Drive Motor: Most models use three-phase asynchronous motors, providing stable and efficient power to the entire machine. The motors employ Class F insulation, offering excellent heat dissipation and a long service life.
• Transmission System: The high-speed motor is converted to a low-speed drum rotation via multi-stage gear reduction, resulting in smoother lifting and lower operating noise. Nucleon electric hoists utilize hardened gear reducers, offering high transmission efficiency and a long service life.
• Load-Bearing Wire Rope: Utilizing the high strength and toughness of the wire rope to support the weight of the goods. Nucleon uses high-quality wire rope that meets national standards, with some models equipped with anti-corrosion coatings to extend its service life in humid environments.
• Safety Devices: Includes multiple safety devices such as an emergency stop system, travel limiter, overload protector, and phase loss protection. These safety systems reduce equipment damage and improve safety and durability.
• Control System: Nucleon 3-ton electric wire rope hoists are generally controlled by a wireless remote control, with an operating distance of 50-100 meters. Remote operation ensures personnel safety and improves work efficiency. Some models can also be equipped with handle operation or cab operation.
Reliable Quality: Utilizing high-quality raw materials and advanced manufacturing processes, all products undergo rigorous quality testing to ensure that every unit meets national standards and industry specifications.
Nucleon 3-ton electric wire rope hoists are suitable for various industrial scenarios, providing reliable material handling solutions for different industries:
| Parameter Name | General values (partially customizable) |
| Rated lifting capacity | 3 tons |
| Lifting speed | 3/0.3-8/0.8 m/min |
| Lifting height | 5-30 m |
| Motor power | 4.5 – 12.5 kW |
| Motor speed | 1440r/min |
| Motor protection level | IP54/IP55 |
| Power supply | Three-phase AC 208V/230V/460V/575V (3Ph-60Hz), 220V/380V/480V (50/60Hz). |
Choosing the right electric hoist requires considering the following key factors:
• Lifting Capacity Requirements: Choose based on the maximum weight of the goods you need to lift. It's recommended to allow a 10-20% safety margin. A 3-ton hoist is suitable for lifting 2-3 tons of goods.
• Lifting Height: Measure the distance from the ground to the highest point the goods need to reach, consider the length of the lifting gear, and choose an appropriate lifting height.
• Usage Frequency: If you use it frequently and for long periods each day, it's recommended to choose a European-style hoist with a higher working class. If usage is infrequent, a standard CD1 hoist is sufficient.
• Working Environment: For outdoor use, choose a model with a high protection rating. Special environments such as high temperature, low temperature, humidity, and dust require customized protective measures.
• Site Conditions: Choose a low headroom hoist if the factory has limited clearance. If precise positioning is required, a dual-speed hoist is more suitable.
• Budget Considerations: Choose the model with the best cost-performance ratio while meeting your usage needs. Nucleon offers a full range of products from economy to high-end models.
Nucleon is a professional electric hoist manufacturer and supplier with 20 years of production and R&D experience, possessing an experienced engineering team and advanced production equipment. We are ISO9001 quality management system certified, and our products meet national standards and industry specifications. Some models have obtained international certifications such as CE and SGS.
If you need to purchase a 3-ton electric hoist or require more product information, please contact Nucleon for professional solutions and preferential quotes.
Standard models can withstand short periods of light rain or dust. For long-term outdoor use, Nucleon recommends choosing a model with a higher protection rating, or installing rain and dust covers. For frequent outdoor use, regularly check the wire rope for rust.
It is recommended to use original parts first. This ensures product quality and after-sales service, avoiding incompatible parts that could affect performance or create safety hazards.
The wire rope directly bears the weight of the load and is used frequently, so it wears out relatively quickly. Nucleon recommends checking the condition of the wire rope before using the 3-ton electric wire rope hoist. If wear or broken wires are found, replace it immediately or stop using it to ensure safety.
Under normal use and regular maintenance, the design life of a Nucleon electric hoist is generally 8-10 years. The specific lifespan depends on factors such as usage frequency, working environment, load conditions, and maintenance. For high-frequency use or harsh environments, it is recommended to shorten the inspection cycle and replace easily worn parts promptly.

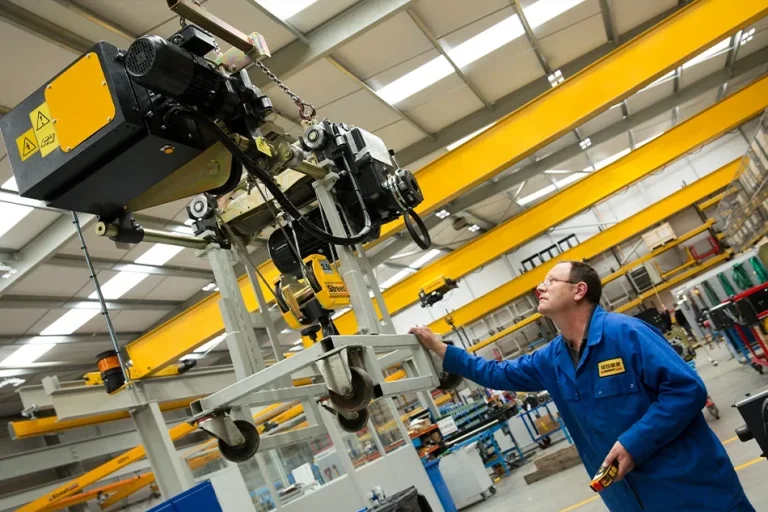

Nucleon provides comprehensive after-sales service, including free installation guidance, operation training, free repair within the one-year warranty period, and lifetime technical support. We also provide discounted spare parts supply and repair services outside the warranty period.
If the following conditions occur, the equipment needs maintenance: abnormal noise or vibration during operation, significantly slower lifting speed, unresponsive brakes, obvious wear or broken wires in the wire rope, malfunctioning limit switches, or a faulty remote control. If these problems are found, stop using the hoist immediately and contact a professional for repair to avoid accidents.
