Portable Gantry Crane

Product Description

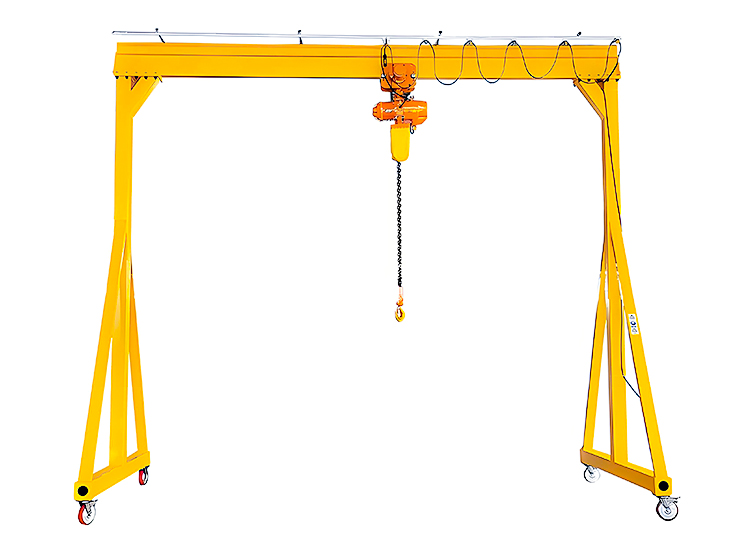

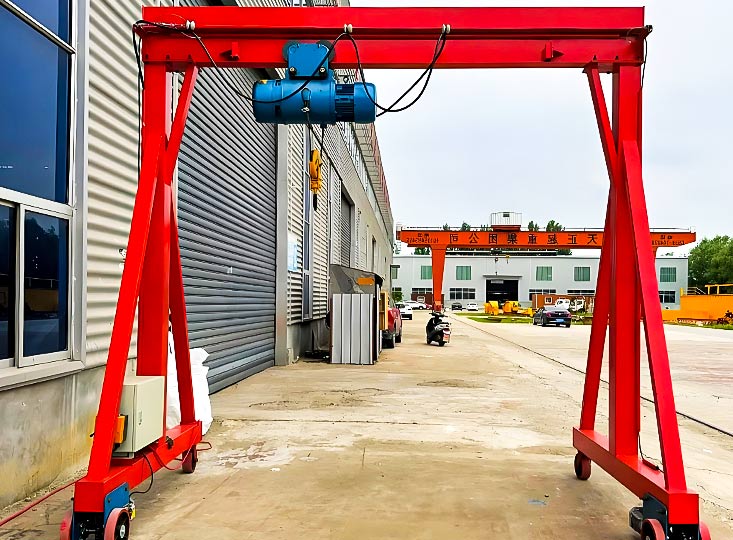

Portable gantry crane is a small, stand-alone lifting device designed to provide reliable heavy-duty handling capabilities in locations where fixed overhead crane installation is not feasible. The core of the equipment is a robust and durable main beam, a key component for load-bearing and lifting. Combined with height-adjustable columns, a stable base frame, and heavy-duty casters, the entire machine can be moved freely without disassembly, flexibly adapting to various workstation needs.

Nucleon offers a variety of configuration options: manual or electric hoists, push-button or wireless remote control operation, lightweight steel or aluminum alloy frames, and customizable spans, heights, and lifting capacities.

Parts

Main Beam：The core load-bearing component, constructed from high-strength Q345B I-beams or box-section steel beams. It supports the entire working load from the trolley and hoist, distributing it evenly to the upright columns on both sides.
Adjustable Columns：Heavy-duty, telescoping steel columns featuring multiple locking positions. This design allows for rapid adjustment of the working height—without the need to replace the main beam—to meet the requirements of various operational scenarios.
Lifting Hoist：Available as manual chain hoist, electric chain hoist, or wire rope hoist. The hoist mounts to a push trolley or motorized trolley that travels the full beam span.
Trolley：The trolley rides along the bottom flange of the main beam for smooth lateral load travel. Push type for light-duty applications; motorized for frequent or heavy-duty cycles.
Heavy-Duty Casters：Swivel casters with locking brakes allow the entire assembled crane to be moved and repositioned by one or two operators, then locked firmly in place during lifts.
Safety Lock Pins：Hardened steel pins secure every height-adjustment point, preventing unintended height changes under load and ensuring compliance with lifting safety standards.
Diagonal Braces and Base Frame：Diagonal braces securely connect the upright columns to the flared base frame, effectively eliminating lateral sway and providing a stable support foundation—whether on level indoor floors or uneven outdoor terrain.
Control System：Standard equipment includes a pendant control box for manual operation. An optional wireless remote control is available to enhance operational visibility and safety during complex lifts or in confined spaces. For larger equipment models, an optional Variable Frequency Drive (VFD) speed controller is also available.

Features

Robust and Durable Main Beam Structure: Constructed from Q345B steel using precision CNC cutting and full-penetration welding processes. Prior to shipment, every unit undergoes a static load test at 125% of its rated capacity, ensuring documented structural reliability.

Adjustable Span up to 12 Meters: The telescoping or bolt-extension beam accommodates a working span from 2 m to 12 m, letting one crane serve multiple bay widths across your facility.

Lifting Height up to 15 Meters: Height-adjustable uprights extend the hook travel distance to 15 meters. This makes the unit ideal for multi-level mezzanines, high-bay facilities, and high-rack warehouses—eliminating the need to install fixed overhead cranes.

Flexible Control Options: Standard operation is via a pendant control box, allowing the operator to remain in close proximity to the load. An optional wireless remote control is available to enhance visibility and safety during complex lifting operations, thereby minimizing operational risks.

Multiple Hoist Configurations Available: Choose manual chain hoist for budget or low-frequency use, electric chain hoist for medium-duty cycles, or wire rope hoist for demanding, high-frequency production lifting.

CE Certified—Safety and Compliance Guaranteed: Nucleon manufactures every portable gantry crane under an ISO 9001:2015 certified quality management system. Each unit bears the CE mark and complies with European and international safety standards for industrial lifting equipment.

Application

Automotive Repair Shops: Engine disassembly and assembly, transmission replacement, and body panel positioning; overhead lifting capabilities available anytime, anywhere.
Manufacturing and Processing: Lifting, flipping, and positioning of heavy components, stamping dies, and welded parts, covering the entire assembly and repair process.
Construction: Positioning prefabricated components, steel beams, roof units, and generator sets on construction sites where mobile cranes are unavailable.
Warehousing and Logistics: Precisely lifting heavy cargo boxes and equipment bases in locations inaccessible to forklifts, eliminating blind spots in handling.
Power and Energy: Transformer installation, generator maintenance, and turbine component lifting; suitable for confined spaces such as substations and machine rooms.
Dock and Marine: Lifting engines, propellers, and deck equipment in narrow dock areas; suitable for small vessels that are difficult to reach with large dock equipment.
Agriculture and Mining: Repairing and replacing parts for large agricultural and construction machinery in field operations, compensating for the insufficient lifting capacity of fixed workshops.

Technical Parameters

Lifting Capacity(ton)	0.5-20ton
Working Class	A3-A5
Span(m)	Up to 12m
Height(m)	Up to 15m
Control Method	Pendant Control; Remote Control
Lifting Hoist	Manual hoist/Electric chain hoist/Wire rope hoist
Power	380V, 50HZ,3-Phase or Customized

Non-standard load capacity, non-standard span, non-standard height, and customized power parameters can all be provided upon request. Please contact Nucleon for a specific quote.

Top Crane Supplier-Nucleon Crane

Nucleon Crane is one of China's largest and most renowned crane manufacturers. With decades of experience, we specialize in the R&D and manufacturing of overhead cranes, gantry cranes, hoists, and lifting accessories. Its products are exported to over 60 countries and regions worldwide.

Each Nucleon portable gantry crane is designed by our own engineers. It is built in an ISO 9001 certified facility, with multiple rigorous quality inspections throughout the process.
