Product Description

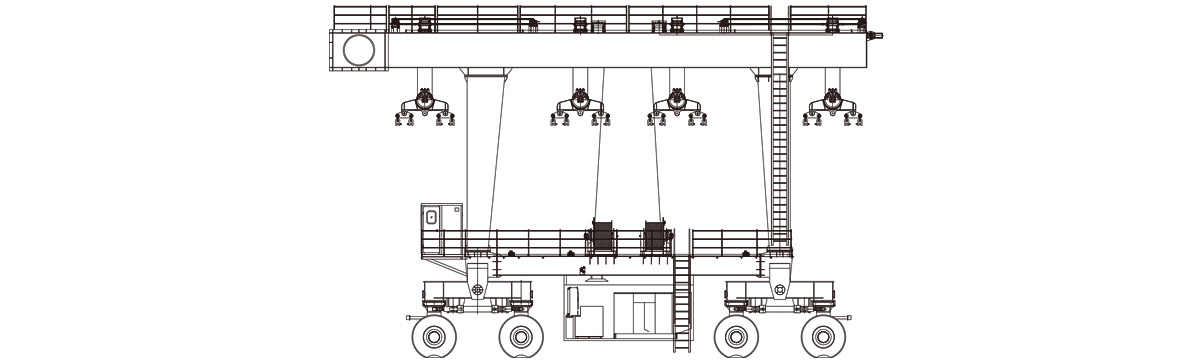

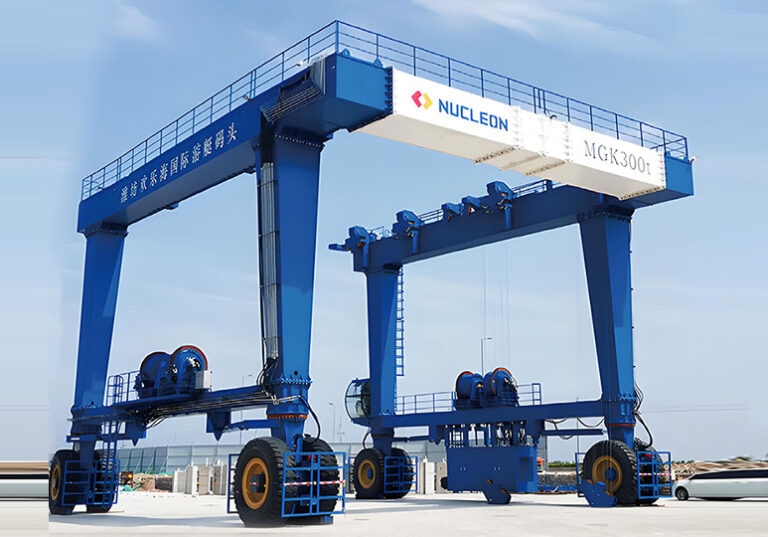

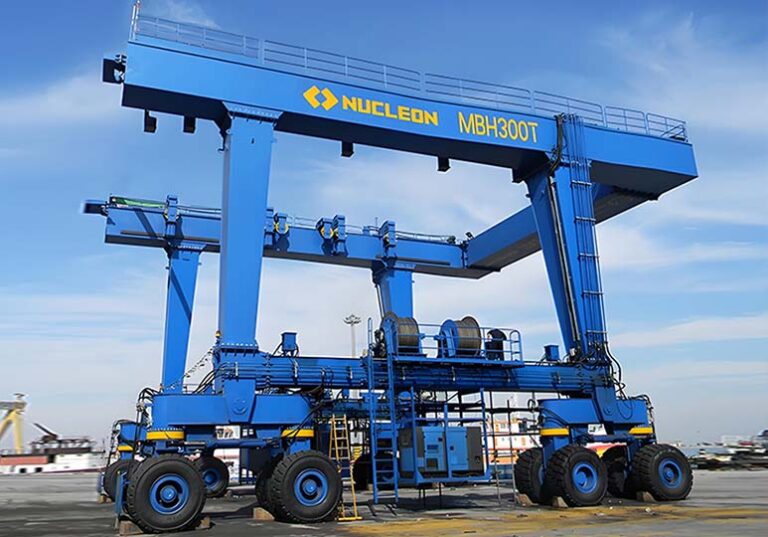

Marine boat hoist is one special design lifting machine, for lifting and lowering yachts or boats in and out of the water. It includes main structure, traveling wheel block, lifting mechanism, steering mechanism, hydraulic transmission system and electric control system. The main structure is "U"type. And it could transfer the boat to a higher position than its own height.

According to different requirements of our customers, our marine boat hoist is capable of handling different tons boat or yacht (10T-500T) from the shore side. Users could use it for the maintenance on the shore side or put the new boat inside the water. It adopts the soft and firm belt to lift the boat and yacht so it will never hurt the surface.

The boat hoist could also put the boats in sequence quickly, with a small gap between each boat. The electrical system uses PLC frequency adjustment, which can easily control every mechanism. The daily operation cost is low. It can realize more walking functions, such as straight line, oblique line, transverse line, and in-place rotation, to meet the requirements of different working conditions.  And it also has climbing ability.

Marine Boat Hoist Parts

The marine boat hoist is composed of key components such as the main beam structure, tire group, lifting mechanism, electrical system, and protective device. The main components are introduced as follows:

• Metal structure: main beam, outriggers, rotating platform, and boom, supporting the entire load.
• Lifting mechanism: includes motor, reducer, drum, and brake, which is responsible for the lifting and lowering movement of goods.

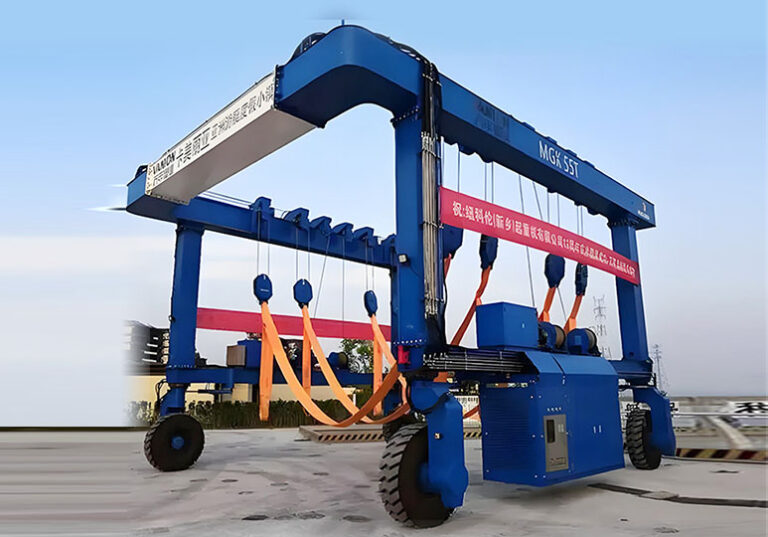

• Fiber sling: The surface is equipped with soft pads to avoid damage by direct contact with the hull.
• Tire set: Supporting a variety of movement modes, including straight, inclined, and in-situ slewing.
• Anchoring device: locks the fuselage to prevent displacement in strong winds.
• Electrical system: provides power to the entire machine.
• Load limiter: monitors the lifting capacity and automatically cuts off and alarms when overloaded.

Advantages

High safety: Equipped with various safety devices such as overload protection, multiple brakes, limit switches, wind speed test, emergency stop button, etc.

Easy installation: Mobile marine boat lifting gantry crane rides on the ground rather than on overhead runways.

Adaptable: Marine boat hoists can sometimes provide the same material handling capabilities as overhead cranes.

Stable operation: Equipped with micro-speed control and stepless speed change system. More stable operation

Yacht protection: Equipped with special wide soft slings, hull protection pads, and sheath design to protect the hull paint and external structure.

Anti-corrosion structure: Made of corrosion-resistant materials and processes

High load capacity: The lifting capacity can be customized from a few tons to several hundred tons.

Application

• Shipyard: Hoisting the completed yacht into the water for testing and delivery.
• Repair shop: hoisting large precision parts such as engines, generators, masts, sails, etc., for installation, replacement, or repair.
• Fishery and Aquaculture: for the lifting and maintenance of fishing vessels and the installation and maintenance of aquaculture facilities.
• Storage area access: hoisting yachts into or out of multi-layered land storage racks.
• Yacht Marina: Lifting a yacht from a trailer into the water, or lifting a yacht from the water onto a trailer.
• Marine rescue: Assisting in the recovery of damaged vessels following disasters such as floods and storms.
• Offshore Oil & Gas Platforms: for platform construction, maintenance, and lifting of supplies and equipment.

Specification

Customize Marine Boat Hoist Solution

If you want to know the Marine boat hoist technical parameters, drawing design, construction plan, quotation budget, etc., please feel free to consult our professional technical team.

Contact us today to learn more about marine boat hoists. Let our professional team customize the most suitable solution for you to help you reach new heights in yacht maintenance and management.

Marine Boat Hoist Manufacturer And Supplier

So far, we have sold various types of cranes to more than 70 countries, including Argentina, Kuwait, Bangladesh, Uzbekistan, Kazakhstan, Bolivia, Chile, Qatar, Tanzania, etc. Nucleon company provides bridge cranes, marine boat hoists, gantry cranes, etc, various types of lifting solutions. It will be your ideal choice for material handling.
