Metallurgy Electric Hoist YH Type

Product Description

YH series metallurgy electric hoist is a high-safety lifting equipment designed for lifting molten metal working conditions, widely used in the metallurgical industry. It is equipped with multiple safety protection functions such as a double braking system, double limit protection, and a heat insulation plate. These functions ensure stable operation in high-temperature and high-risk metallurgical environments.

This metallurgy hoist usually goes with LDY type metallurgical single girder overhead crane, or independently installed in the workshop fixed under suspension rail, it is a highly efficient and flexible lightweight metallurgical lifting equipment, which is able to meet a variety of lifting needs in the metallurgical workshop.

YH type electric wire rope hoist for metallurgy is optimized based on the mature technology of CD1/MD1 type electric wire rope hoist, and upgraded for the special working condition of lifting molten metal. A set of independent safety brakes is added to the drum to further enhance the safety and reliability of the equipment, which is in full compliance with the high standard requirements for lifting equipment in the metallurgical industry.

Types of Metallurgy Electric Hoists

Metallurgical hoists are primarily categorized into two types:

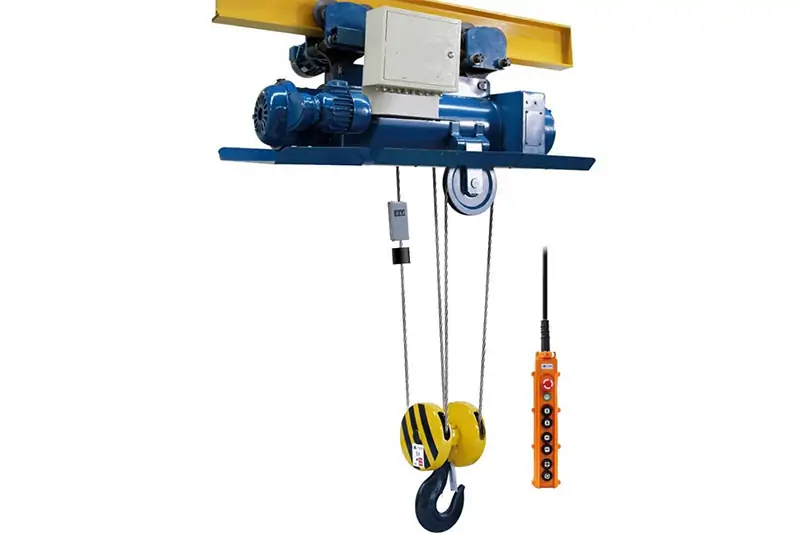

The CD-type electric hoist features a single-speed design with a simple structure, offering a lifting speed of 8 meters per minute, making it suitable for standard lifting operations.

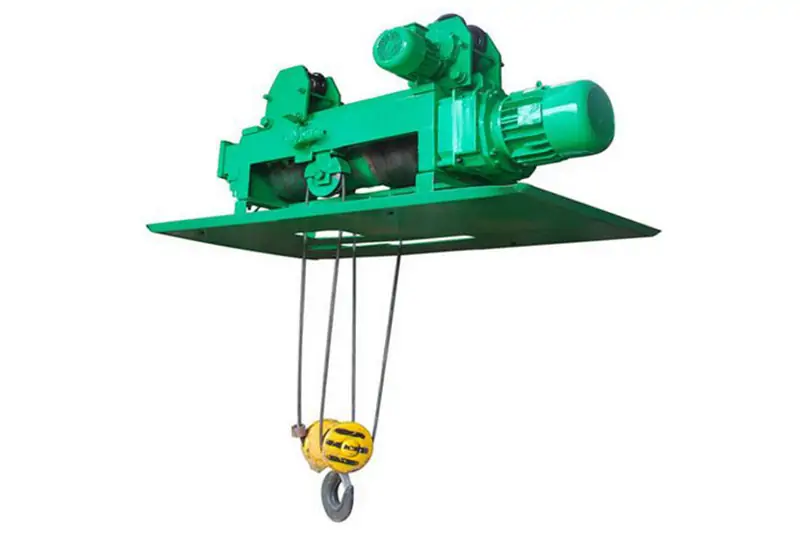

The MD-type electric hoist features a dual-speed design, offering two speed options: 8 meters per minute and 0.8 meters per minute. The low-speed setting enables precise positioning functionality, making it particularly suitable for applications requiring fine control, such as machine tool installation and equipment maintenance. The dual-speed design allows the MD-type hoist to maintain conventional lifting capacity while significantly enhancing operational precision and safety, thereby meeting the requirements of precision loading/unloading, sandbox clamping, and other fine-tuning tasks.

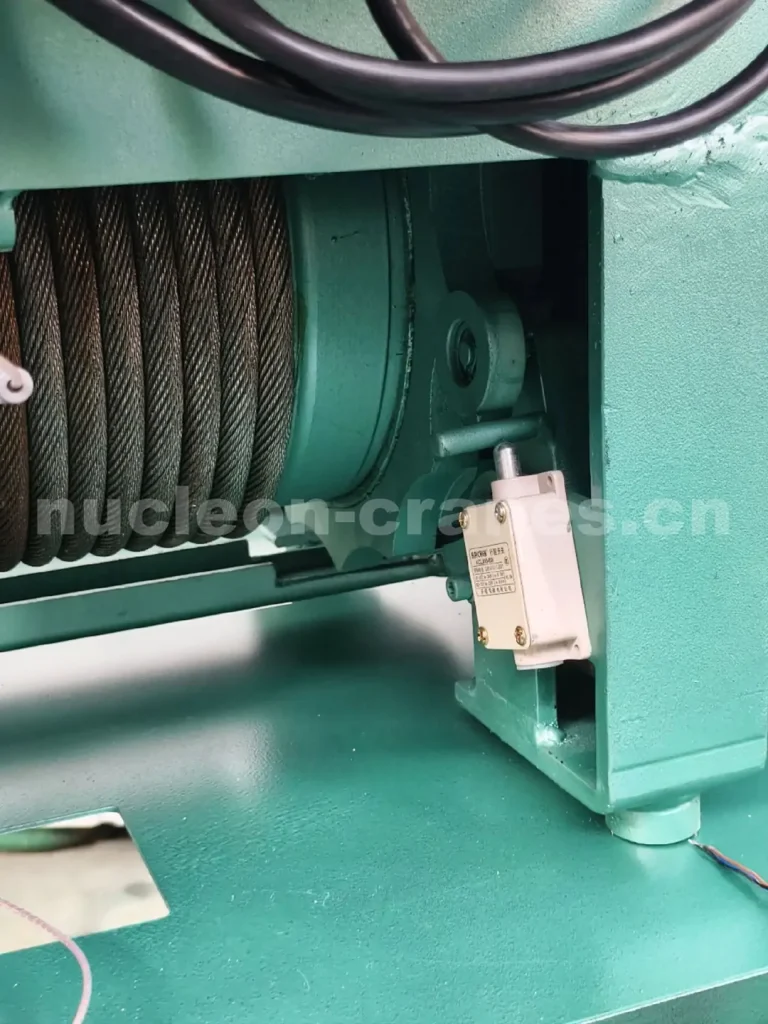

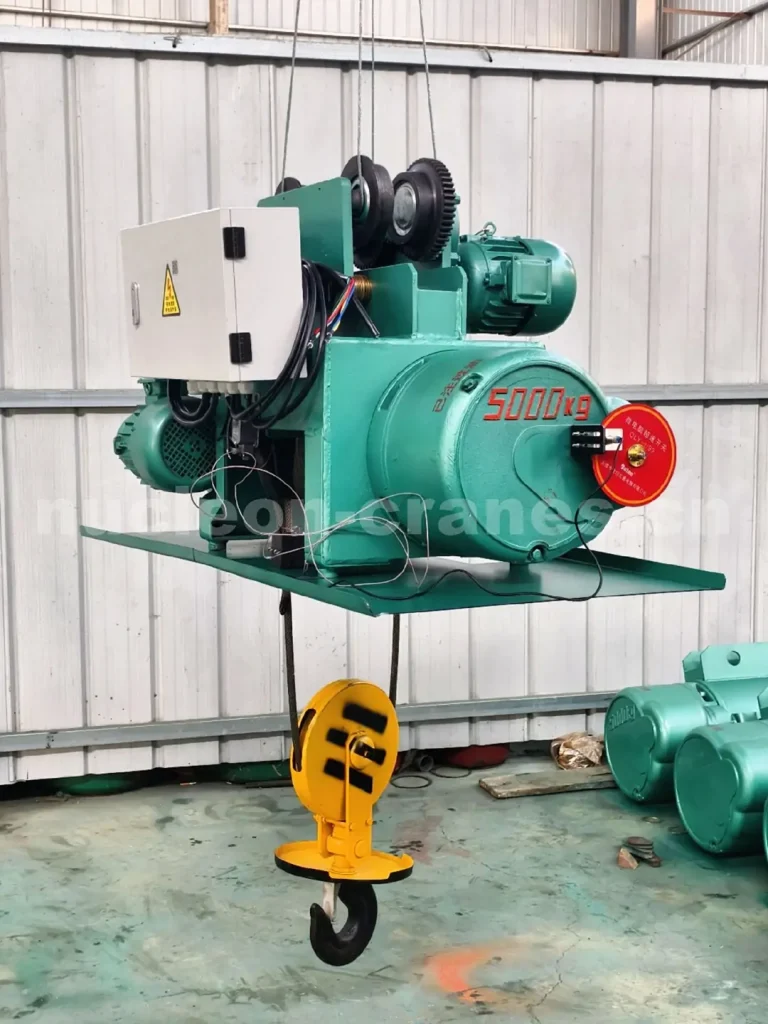

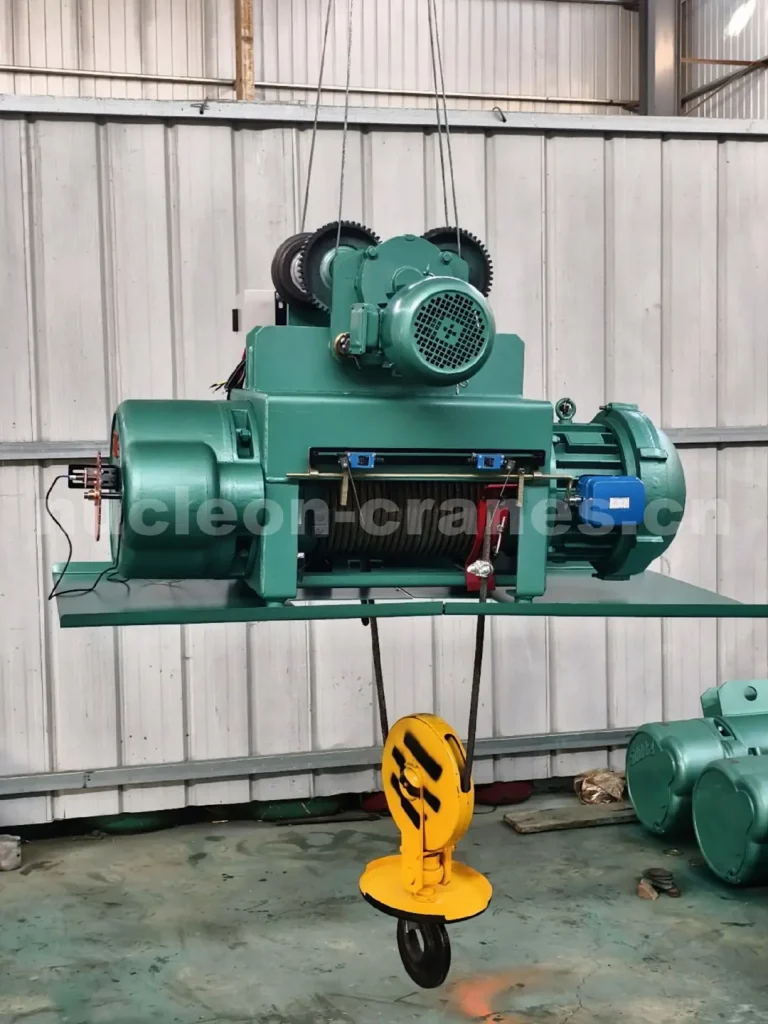

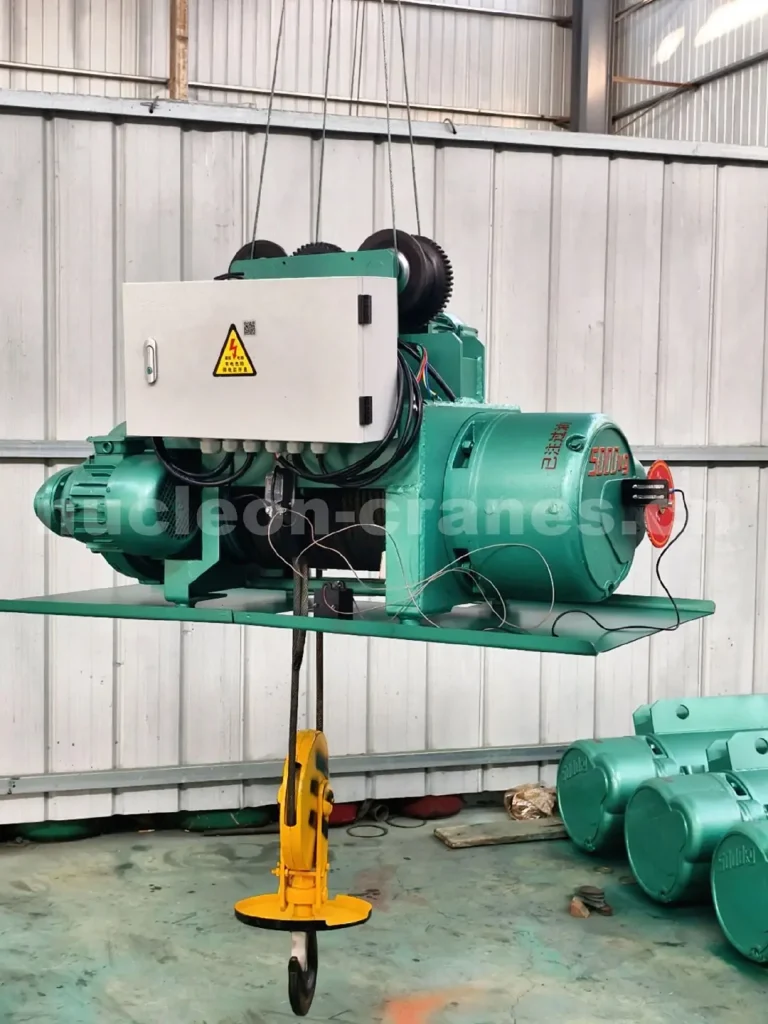

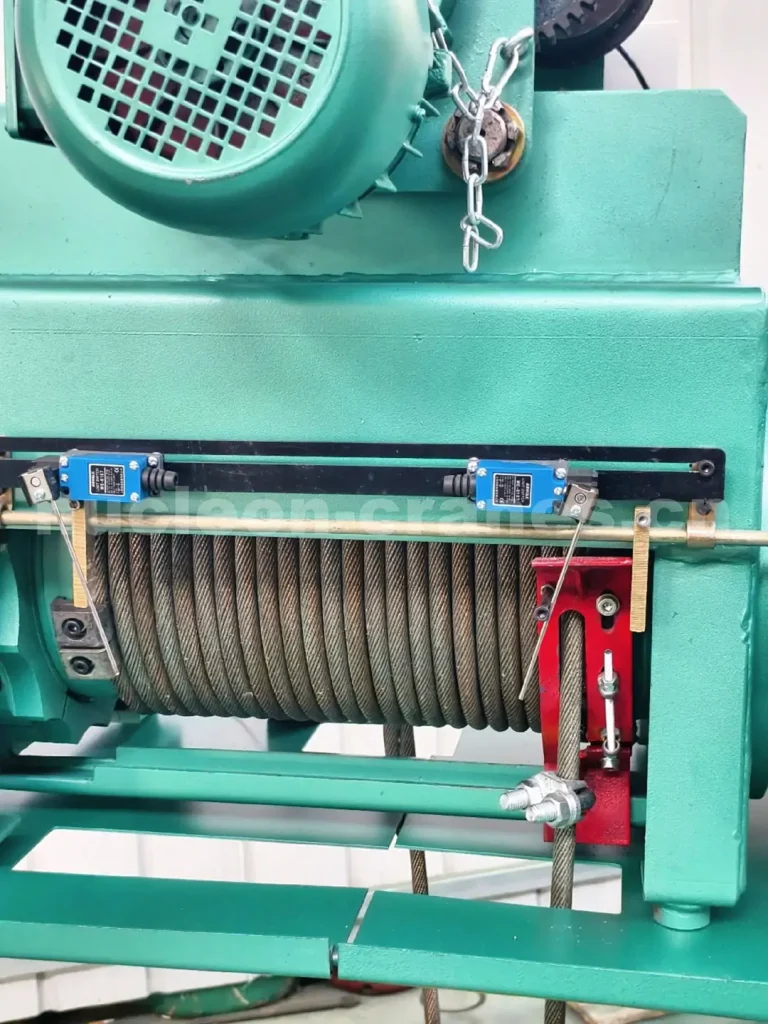

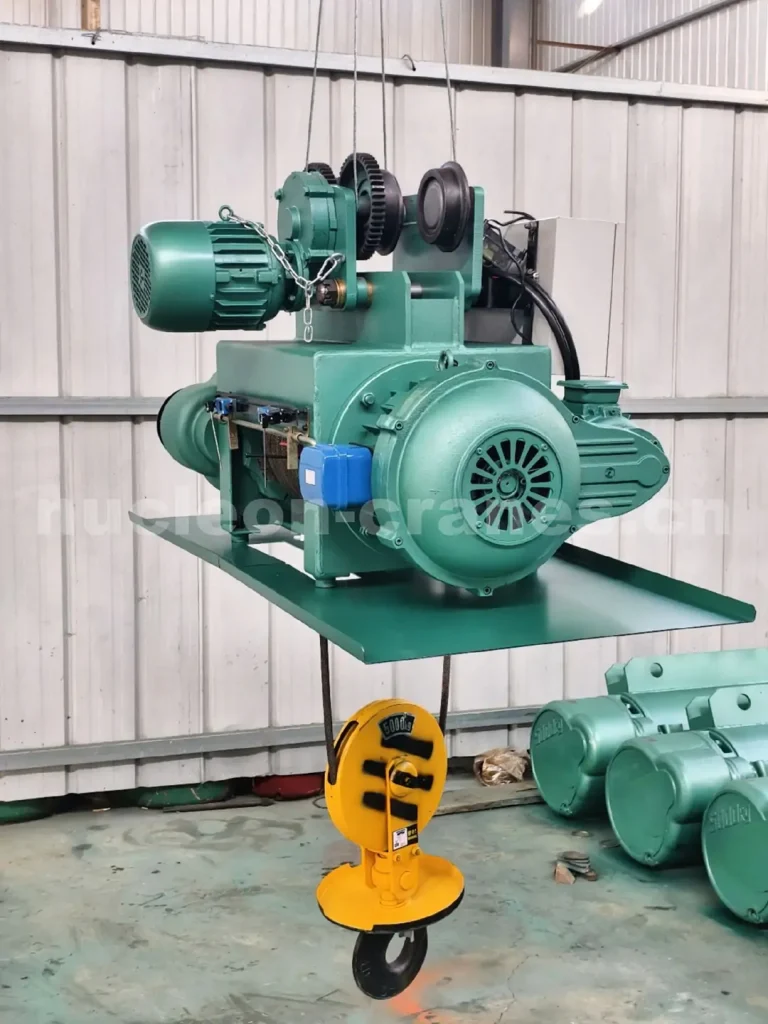

Products Show

Application

YH metallurgical electric hoists are specially designed for lifting molten metal and are suitable for industrial environments such as foundries, metallurgical workshops, and sand casting workshops. They are typically operated using a wireless remote control. To ensure safety and reliability, they must not be used in areas with explosion hazards, where sulfuric acid or other corrosive gases are present, or in environments where toxic or flammable items are being lifted.

Foundry: lifting and pouring of steel and iron ladles, as well as handling of sand molds, castings, and other materials.
Furnace workshop: for the addition of furnace charge, transfer of molten metal, and cleaning of waste materials.
Smelting plant: conveying raw materials such as ore and coke, and lifting finished products such as steel ingots and aluminum ingots.

Features

Specialized for metallurgy: Specially for lifting high-temperature and heavy materials such as molten metal. Suitable for foundries, furnace workshops, smelters, and other high-temperature, heavy materials lifting places. Meet the operational needs of different environments.
Dual braking system: With a support brake and a safety brake, when the main brake fails, the safety brake can quickly ensure that the heavy load will not fall at a loss of speed, which greatly improves the safety of the operation.
High-temperature insulation protection: For the high-temperature environment of the metallurgical industry, the equipment especially adopts high-temperature insulation protection measures to ensure that the hoist can still work normally under high temperatures.
Remote control: Remote control allows the operator to precisely control the hoist from a safe distance.

Drawing

Specifications

Model Specification			HY1T	HY2T	HY3T	HY5T	HY10T
Lifting height		meters	6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30	9/12/18/24/30
Lifting speed (/slow)		m/min	8	8	8	8	7
Running speed		m/min	20	20	20	20	20
wire rope	Rope Diameter	mm	7.4	11	13	15.5	15.5
	Wire Diameter	mm	0.34	0.5	0.6	0.7	0.7
	structural form		18*7+IWS	18*7+IWS	18*7+IWS	18*7+IWS	18*7+IWS
I-beam track model GB706-65			16-28b	20a-32c	20a-32c	25a-45c	32b-63c
Working Grade			M6	M6	M6	M6	M6
	Model		YZD 22-4	YZD 31-4	YZD 32-4	YZD 41-4	YZD 51-4
Hoisting motor	capacity	kW	1.5	3	4.5	7.5	13
	RPM	rpm	1380	1380	1380	1380	1380
	Number of phases		3	3	3	3	3
	Voltage	Volt	380	380	380	380	380
	Current	Ampere	4.3	7.6	11	18	30
	Frequency	Weeks/Seconds	50	50	50	50	50
	Model		YZD 12-4	YZD 12-4	YZD 12-4	YZD21-4	YZD21-4
Running motor	capacity	kW	0.4	0.4	0.4	0.8	0.8
Running motor	RPM	rpm	1380	1380	1380	1380	1380

Professional manufacturer of metallurgical electric hoists, providing one-stop lifting solutions

As a professional manufacturer of YH-type metallurgical electric hoists, Nucleon leverages its robust technical capabilities and extensive industry experience to provide customers with high-quality, highly reliable metallurgical lifting equipment. We not only provide standard models of metallurgical wire rope electric hoists but also offer customized design and production based on your specific requirements, including non-standard metallurgical electric hoists and casting-specific electric hoists, with a complete range of specifications to meet diverse operational needs.

From R&D and design, production and manufacturing, to transportation, installation, commissioning, testing, and operator training, we offer a comprehensive turnkey engineering service, effectively reducing your procurement and management costs.

If you have any procurement or customization needs for metallurgical electric hoists, please feel free to contact us! Our professional team will provide you with the optimal solution.
