Product Description

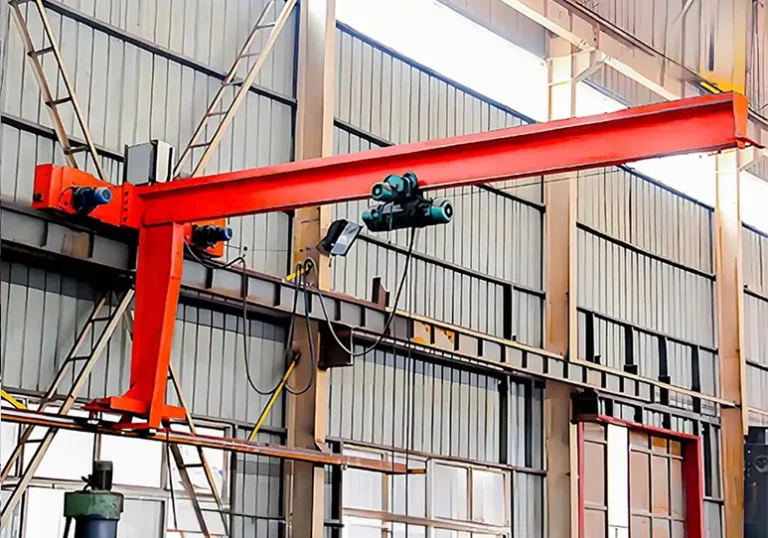

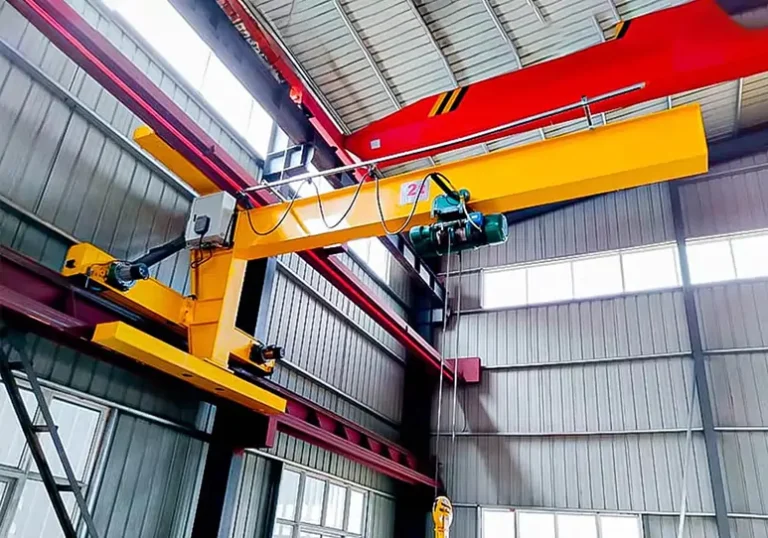

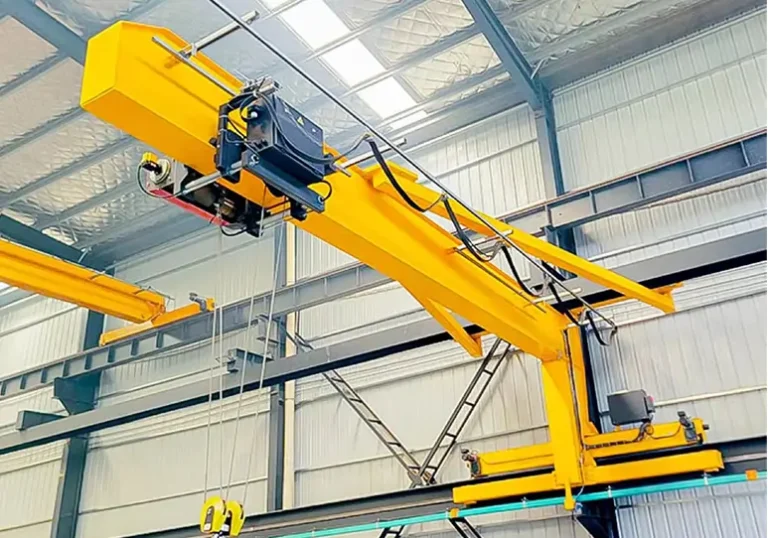

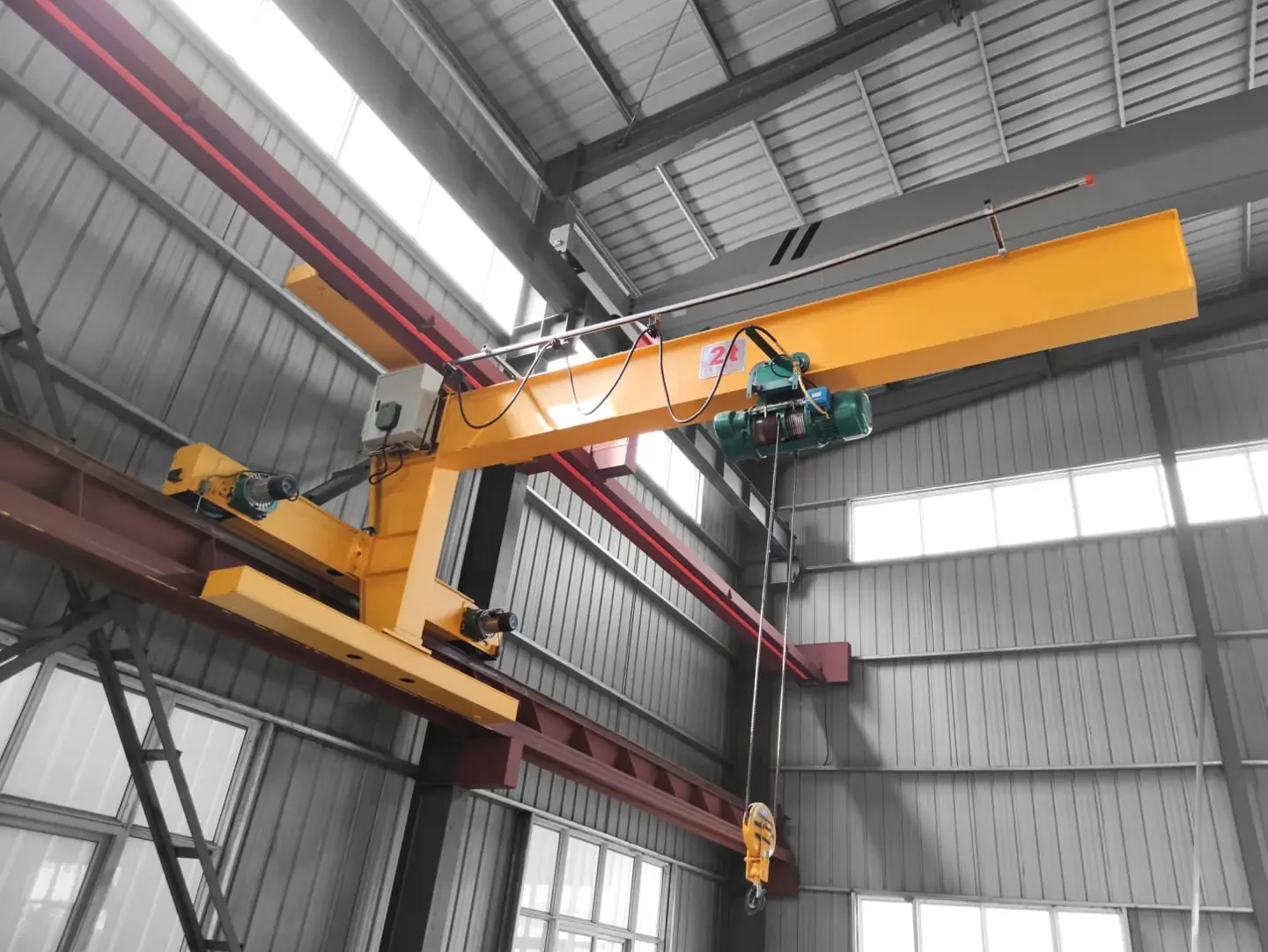

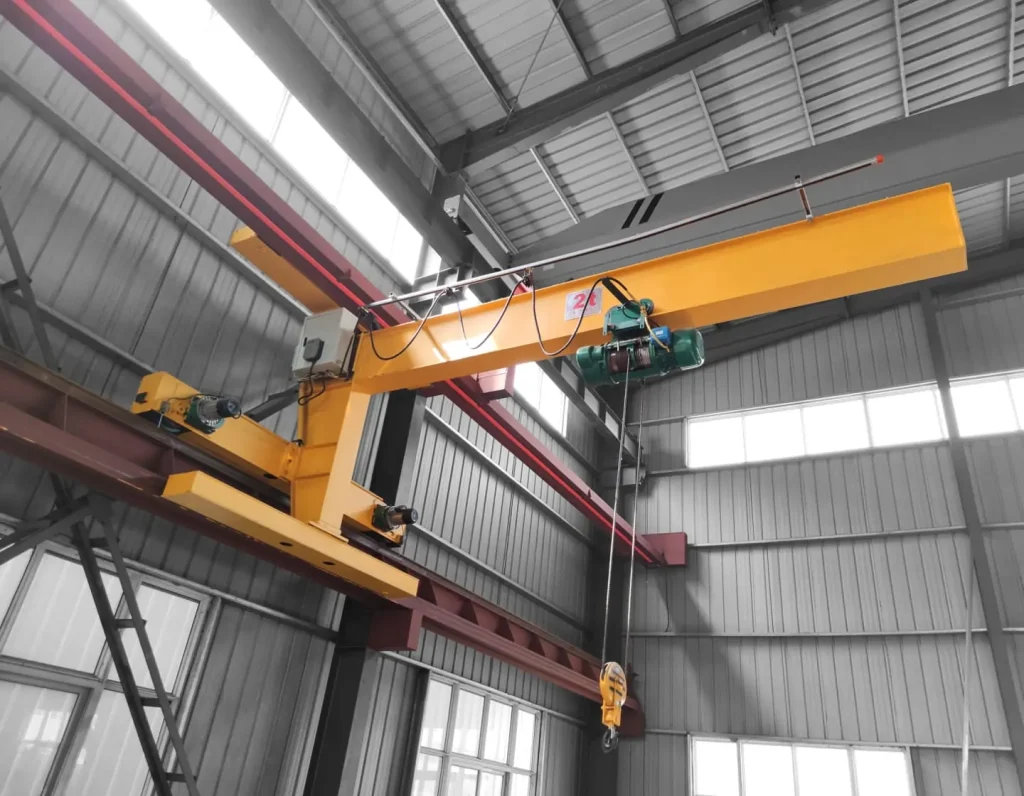

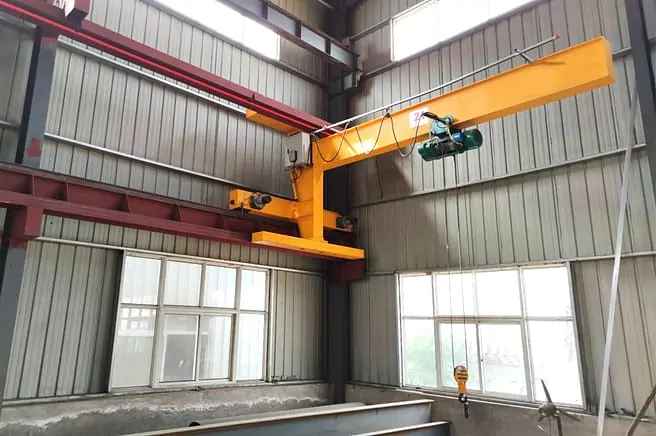

The wall traveling jib crane also called a wall running jib crane, offers a space-saving lifting solution specifically engineered for efficient material handling along walls or elevated structures. Unlike floor-mounted jib cranes, it requires no floor space or concrete foundations, making it particularly suitable for workshops, assembly lines, and warehouses with limited floor clearance. The crane operates smoothly on ASCE rails via an electric wall-travel mechanism, enabling seamless material movement across extended work zones without interfering with overhead crane operations. With a lifting capacity up to 15 tons and customizable span lengths, it delivers operational flexibility for diverse industrial applications.

The equipment adopts a unique rail mounting method, fixing the travelling rail directly on the concrete columns of the plant, realizing precise longitudinal movement along the rail. Its core function is completed by the electric hoist, which can simultaneously realize lateral movement along the cantilever and vertical lifting operation. It is especially suitable for workplaces that require large coverage, such as large workshops and warehouses.

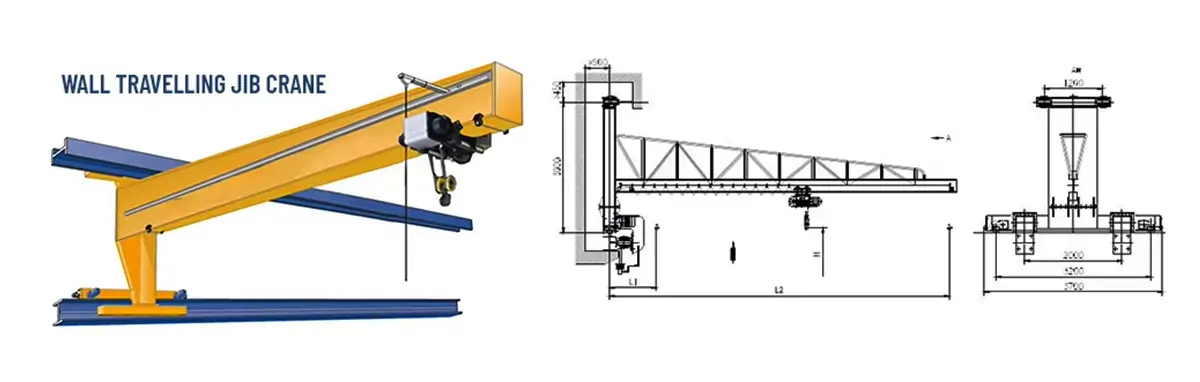

Wall Travelling Jib Crane Components

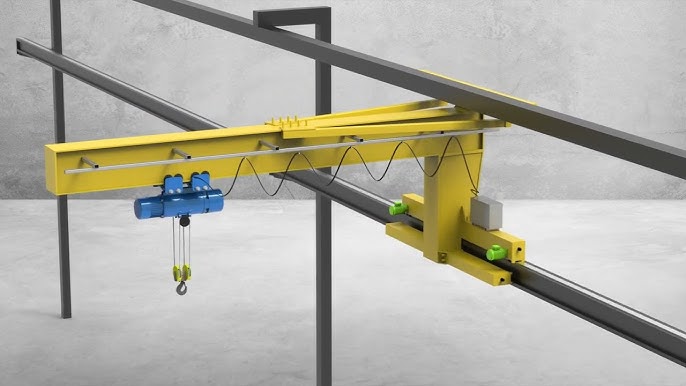

Wall traveling jib crane is based on the structure of traditional jib crane R & D design, is a kind of jib crane that can run along the wall or other supporting structure on the elevated track.

The equipment adopts a unique rail mounting method, fixing the travelling rail directly on the concrete columns of the plant, realizing precise longitudinal movement along the rail. Its core function is completed by the electric hoist, which can simultaneously realize lateral movement along the cantilever and vertical lifting operation. It is especially suitable for workplaces that require large coverage, such as large workshops and warehouses.

Product Features

• Structural composition: composed of a bracket, a cantilever device, and an electric hoist, a compact structure, easy to install.
• Rotation capacity: the cantilever can be rotated 180°, flexible coverage of the operating area.
• Easy to install: it can be directly installed on the pillar of large steel structure buildings, and the installation position and height can be adjusted to meet different operational requirements.
• Structural advantage: designed for short distance, high intensity, frequent lifting operations, energy efficient, labor saving operation.
• Space advantage: no need to modify the building structure, does not occupy ground space, and achieves three-dimensional cargo transportation on a plane.
• Convenient maintenance: simple structure, convenient operation and maintenance, saving labor costs.
• High efficiency and energy saving: adopting electric drive, smooth operation, and low energy consumption.

Application

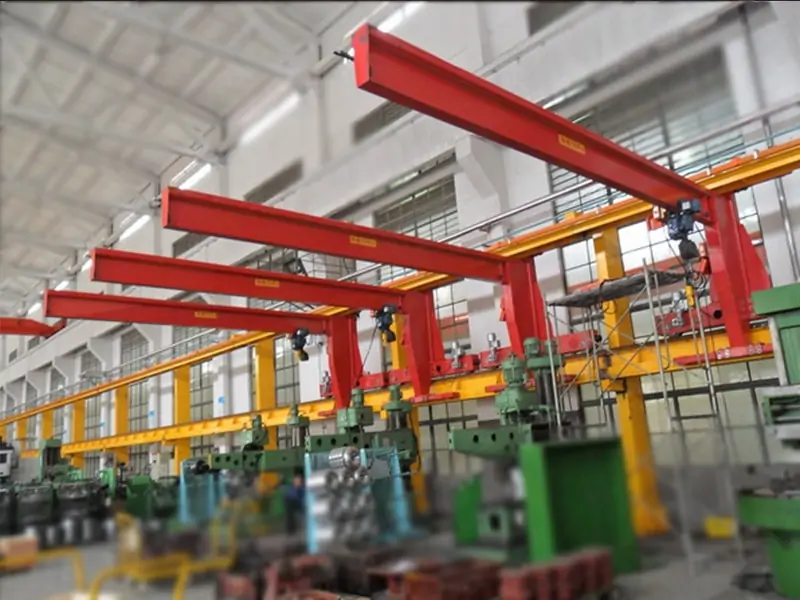

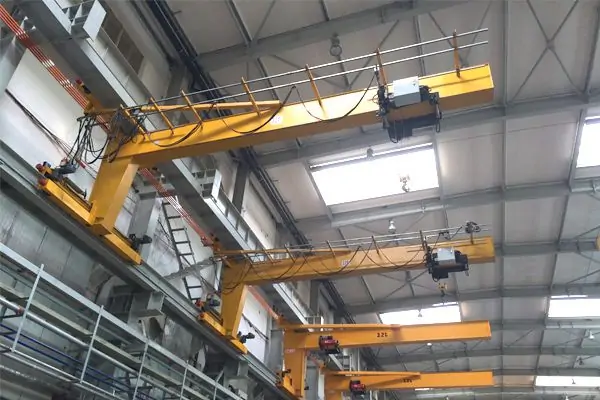

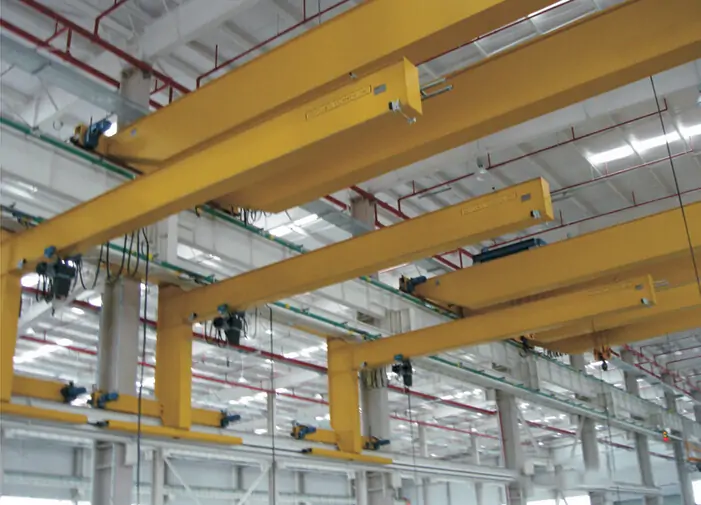

Wall-traveling jib cranes are used in workshops or warehouses with large spans and high building heights, and are more suitable when lifting operations are frequent near the walls. It can be widely used in factories, mines, workshops, production lines, assembly lines and machine tools, up and down work and warehouses, docks, and other occasions of heavy lifting.

• Large industrial workshop: used in production line material transfer, heavy equipment installation and maintenance, machine tool loading and unloading operations.
• Warehousing and logistics centers: applied to loading and unloading of goods in large warehouses, access to high shelves, and material handling in logistics sorting centers.
• Manufacturing and assembly workshop: used in assembly line, heavy parts lifting, semi-finished products and finished products transfer, production line equipment maintenance.

Specifications

Select a Suitable Jib Crane for You

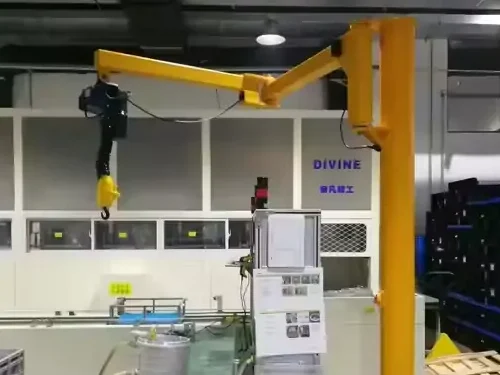

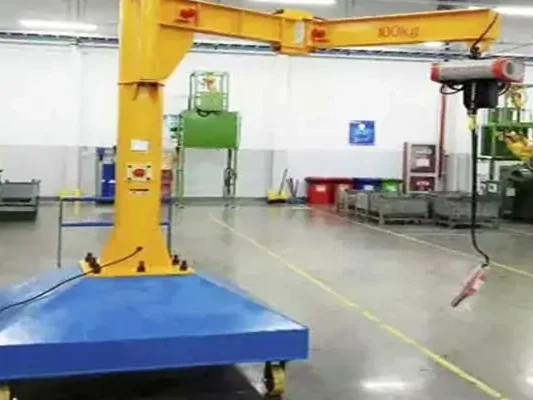

Selecting the right jib crane enhances lifting efficiency and ensures workplace safety. Nucleon offers a full range of customizable jib cranes, including column-mounted, mobile, wall-mounted, wall-traveling, and articulated types, to meet diverse industrial environments and material handling requirements.

Contact our expert team to help you select the most optimal, reliable, and cost-effective jib crane solution.

Videos

Regardless of the jib crane type you require, our engineering team can recommend suitable models based on your specific needs, handling design, and manufacturing. Lifting capacity, span length, rotation angle, and installation methods are all customizable.

Reliable Wall Traveling Jib Crane Manufacturer and Supplier

As a professional manufacturer and supplier of Wall Traveling Jib Cranes, we are committed to providing high-quality material handling solutions to customers worldwide. With over 20 years of professional manufacturing experience, our products are constructed using premium-quality steel and precision transmission systems, with a rated lifting capacity ranging from 0.5 to 10 tons and a rotation angle of 180° to 360°. They are particularly suitable for use in space-constrained environments such as workshops, warehouses, and ports.

All products are certified to international standards such as CE and ISO, and can be equipped with optional intelligent features such as variable frequency control and anti-swing functionality. We have a comprehensive export service system, with products exported to over 50 countries and regions worldwide, including Europe, America, and Southeast Asia. For your specific requirements, our engineering team can provide a one-stop customized service from design to installation. For detailed technical specifications or customized quotes, please feel free to contact our sales consultants, and we will provide you with the most competitive solutions.

Certificate

What is the difference between a Wall Traveling Jib Crane and a Wall-Mounted Jib Crane?

• Wall-Mounted Jib Crane: Fixed to the wall, capable only of rotation.
• Wall Traveling Jib Crane: Fixed to the wall, also capable of moving along the wall.

The primary distinction lies in their structural form and operating mode. Below is a concise comparison:

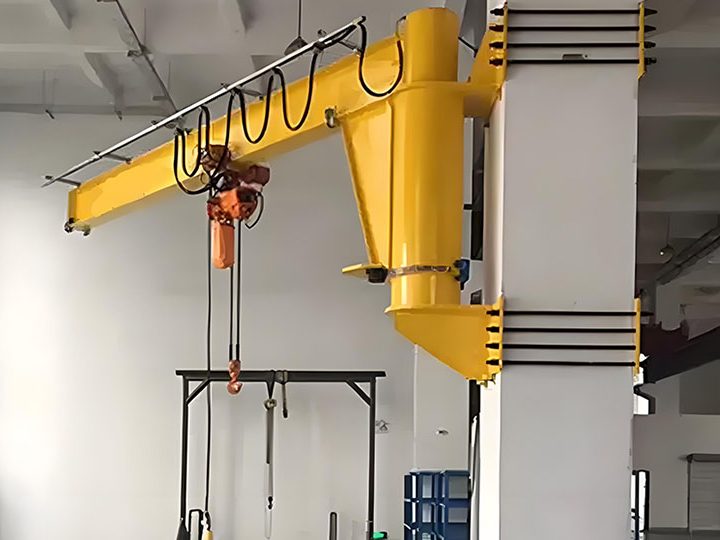

1. Wall-Mounted Jib Crane

• Installation Method: Permanently mounted on a wall or pillar, with the jib rotating at a fixed point.
• Operational Features: The boom can rotate within a specific angle range (typically 180° or 270°), but cannot move horizontally along the wall.
• Suitable Scenarios: Ideal for handling small workpieces at fixed workstations (e.g., assembly lines, workbenches, beside machinery).
• Advantages: Simple structure, minimal space requirement, easy installation, low cost.

2. Wall Traveling Jib Crane

• Advantages: Offers greater coverage and flexibility, and can operate in coordination with overhead cranes.
• Installation Method: Mounted on a track system installed on walls or building columns, enabling horizontal movement along the track.
• Operating Features: Not only can the jib rotate, but the entire crane can traverse back and forth along the wall, covering a longer working range.
• Suitable Scenarios: Ideal for material handling on production lines, in assembly workshops, or between workstations over extended distances.
