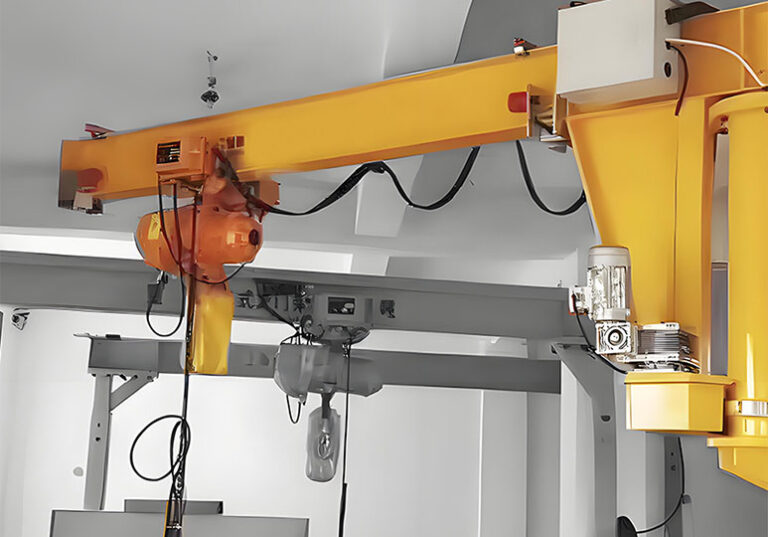

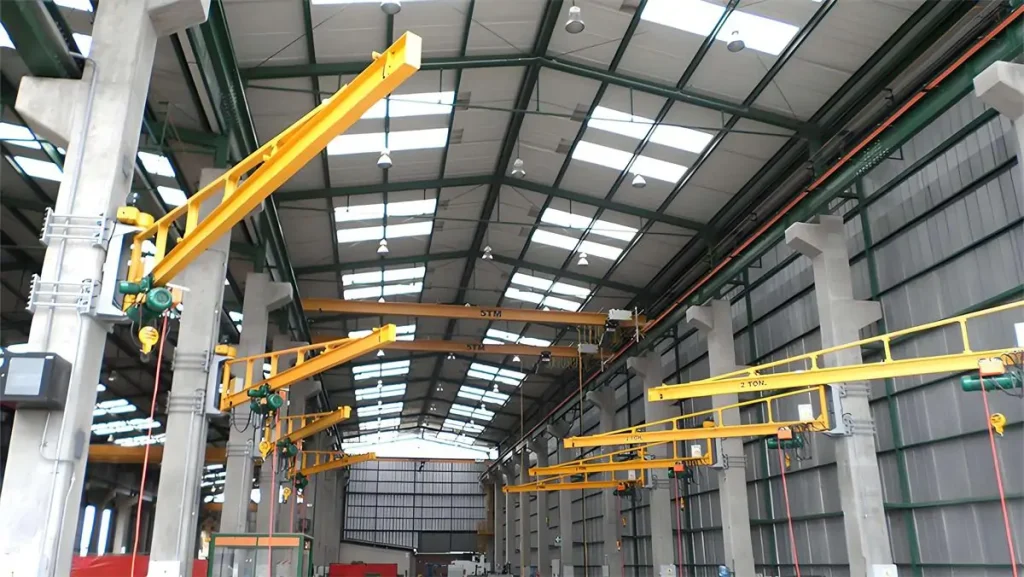

Wall Mounted Cantilever Cranes is a small size crane lifting equipment. The structure of wall jib crane is quite simple and also compact.

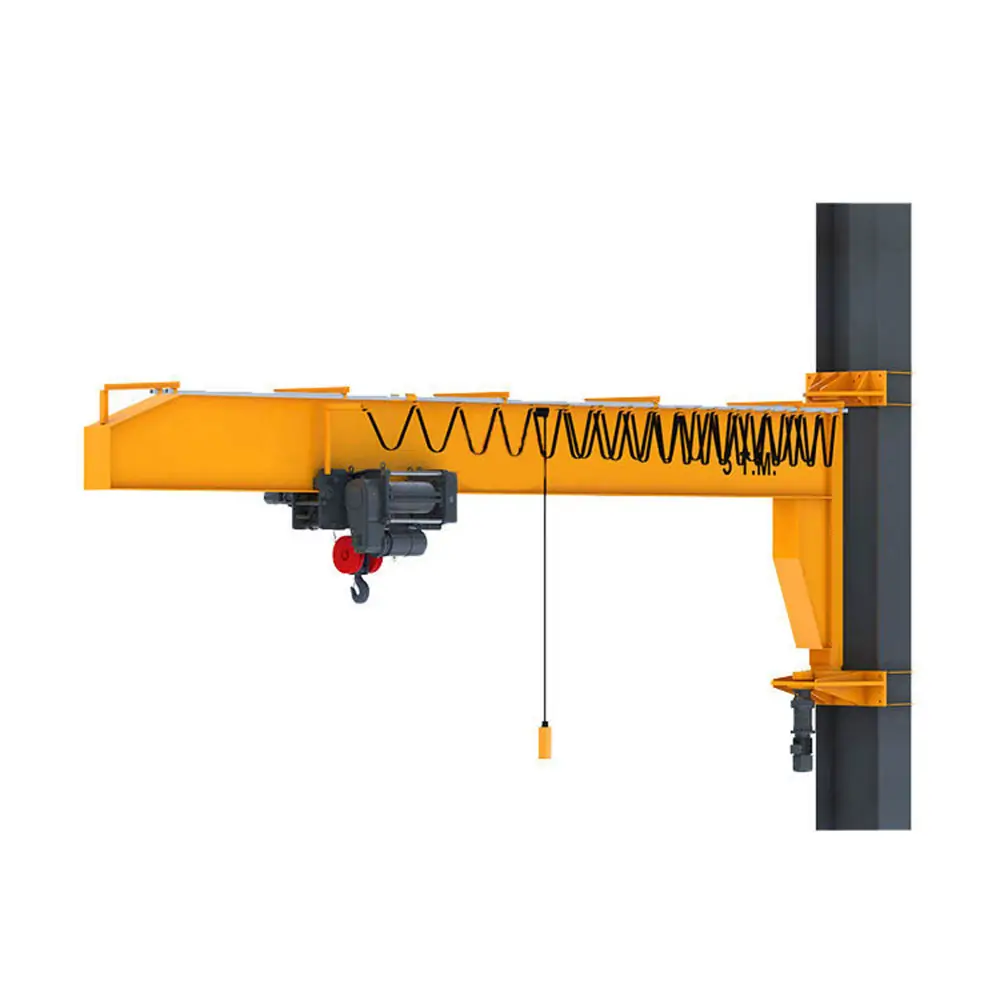

Wall Mounted Cantilever Crane is a compact and small lifting equipment, which is mounted on the wall or column, with the advantages of space saving, flexible operation, and easy maintenance. Its unique wall-mounted design does not take up floor space, especially suitable for space-constrained operating environments, such as small workshops, warehouse corridors, or equipment-intensive areas.

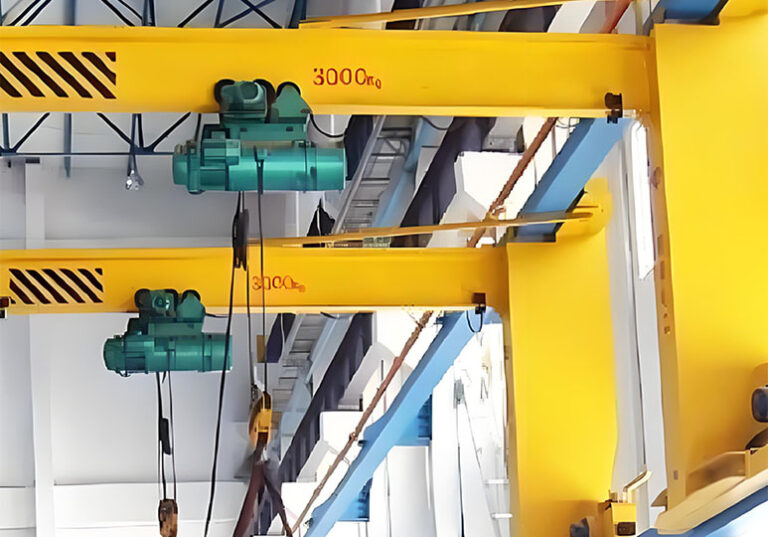

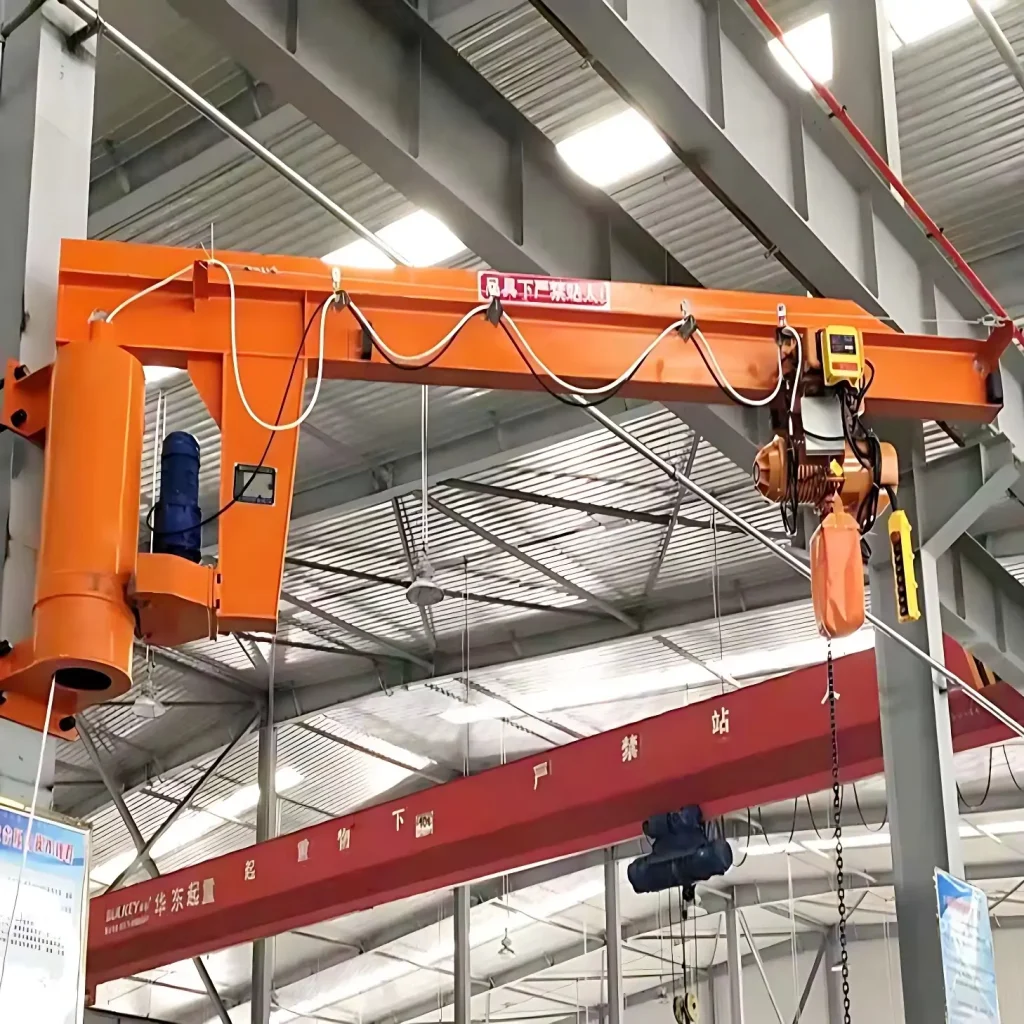

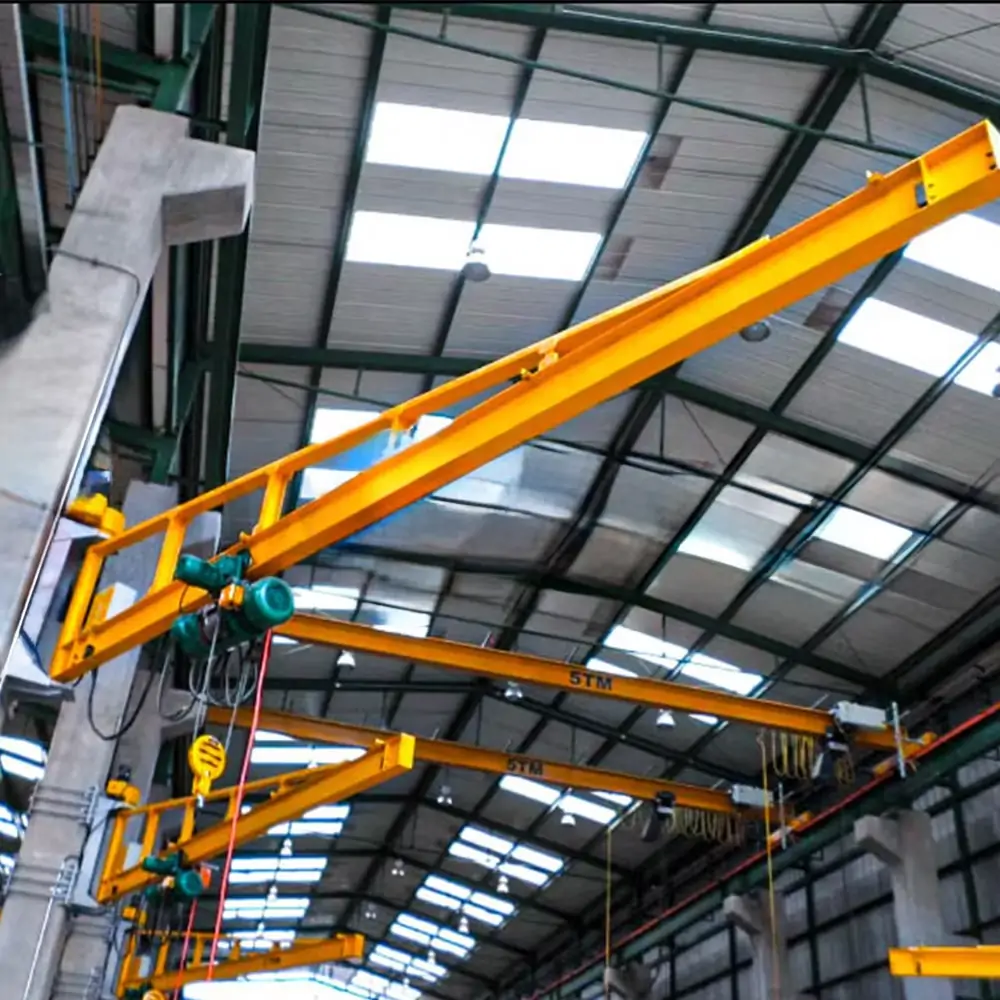

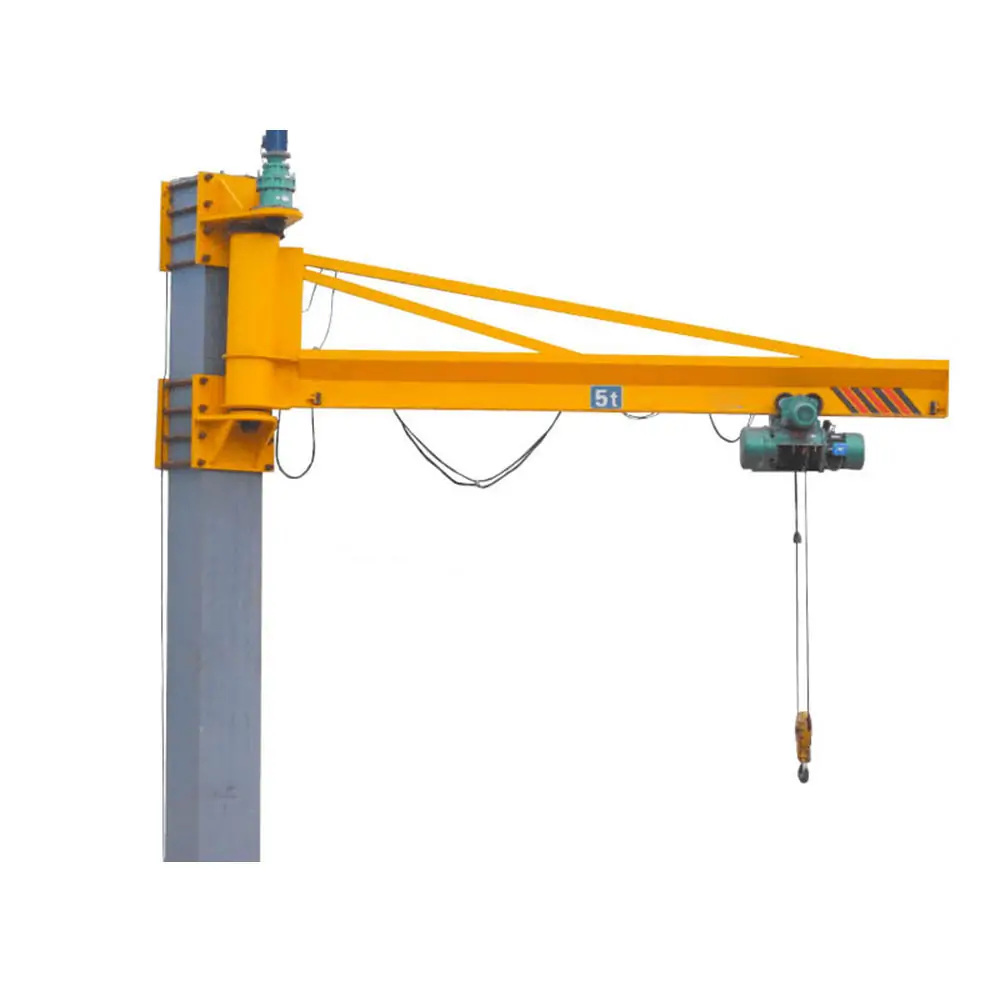

The equipment adopts modular, parametric structural design, an overall structure of the rugged, with excellent stability and reliability. The structural form can be divided into wall-mounted slewing cranes and wall-mounted cantilever jib cranes, both of which can be customized according to different working conditions.
Space-saving: Wall-mounted installation, does not occupy the ground, especially suitable for space constraints or an existing equipment layout, compact workshop environment.

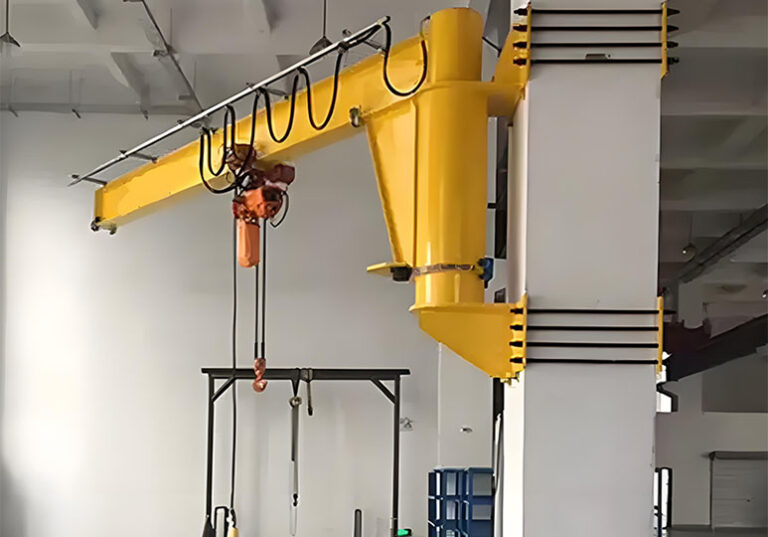

Simple structure, convenient installation: Directly fixed on the wall or column, without the need for independent columns, the installation and construction cycle is short.
Flexible rotation: The cantilever can be rotated within 180° (some structures can reach 270°), adapting to the lifting needs of different work areas.
Convenient operation and lifting efficiency: Equipped with electric hoists or manual hoists, easy to operate and suitable for frequent and short-distance lifting operations.
Strong load capacity: The load range can be customized according to the needs of use, with common loads ranging from 125kg to 2 tons, adapting to a variety of industrial scenarios.
Wide range of applications: Widely used in machinery manufacturing, assembly lines, warehousing, maintenance workshops, and other local material handling, to enhance operational efficiency and safety.
Industrial production: Wall mounted cantilever jib crane is suitable for small factories and machine shops, used for lifting workpieces, components, or electronic products, etc., to improve production efficiency.
Warehousing and logistics: Used in logistics centers and warehouses for loading and unloading, stacking and picking of goods, to improve handling flexibility.
Commercial facilities: For supermarkets, distribution centers, and other places, for merchandise and fresh products handling operations.
Construction: For lifting and transportation of construction materials and tools, as well as installation and removal of support equipment at construction sites.
Household and individual workshops: Suitable for the handling of raw materials and finished products and for light lifting needs.
Energy and port industry: For auxiliary lifting and overhauling operations at power stations, terminals, and other sites.

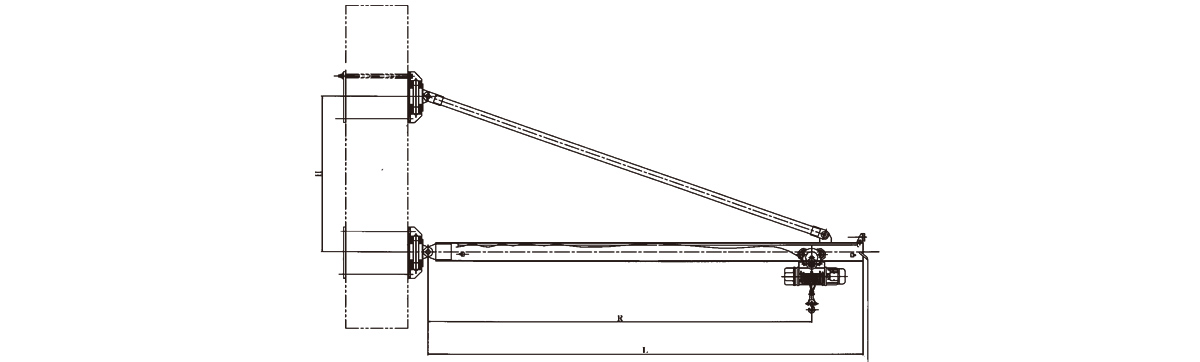

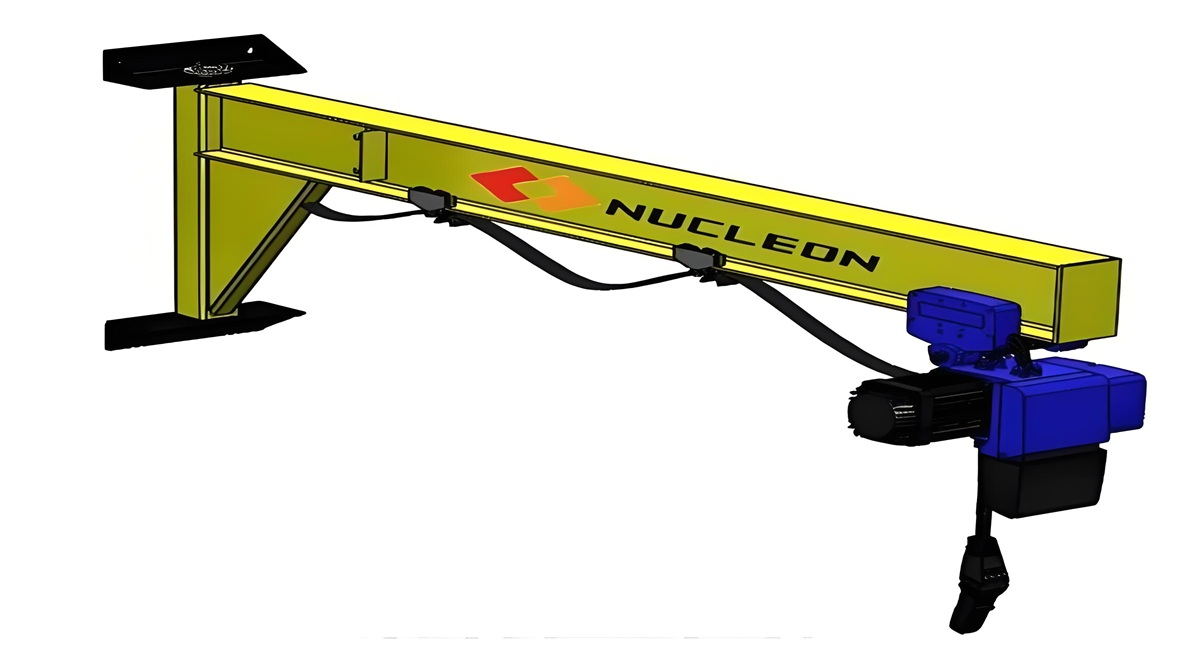

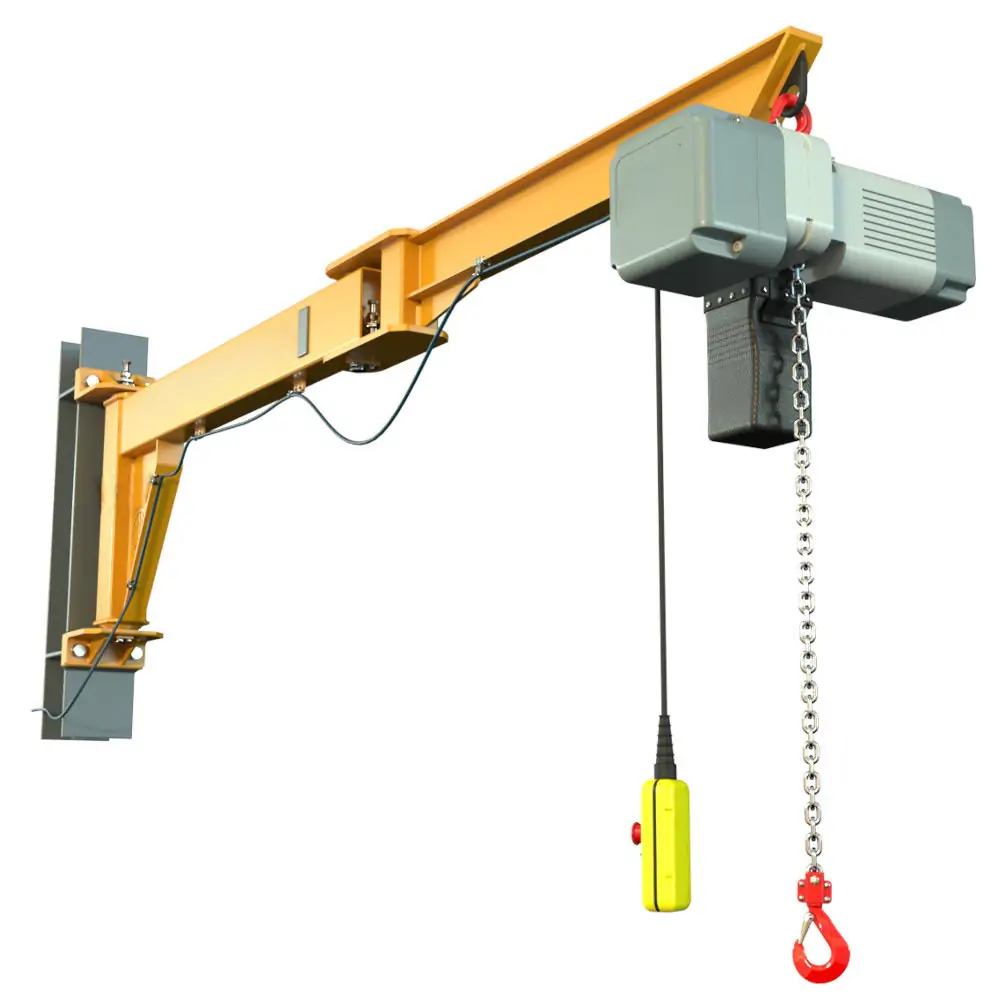

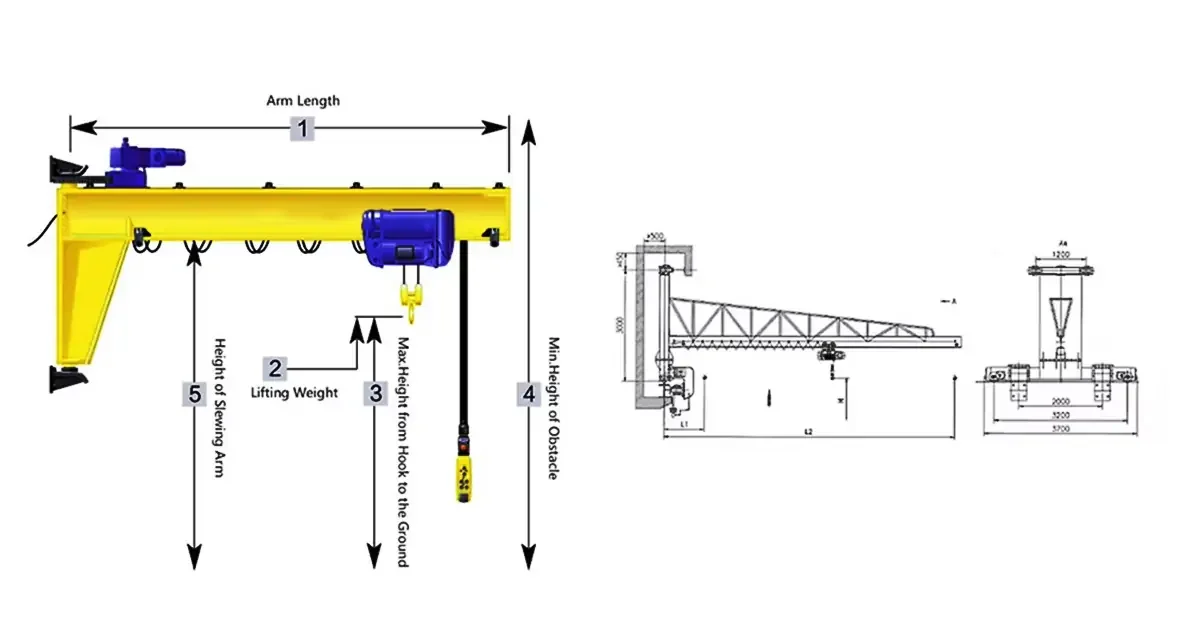

Wall Mounted Cantilever Crane is mainly composed of column, cantilever, slewing device, electric hoist and mounting parts, etc. All parts are compact, easy to install, smooth running, strong load capacity, and can be customized according to different application scenarios.
| Lifting capacity | 0.25 ton | 0.5 ton | 1 ton | |||||||
| Lifting height | 5 m | 5.5 m | 6 m | 5 m | 5.5 m | 6 m | 5 m | 5.5 m | 6 m | |
| Valid radius | 4 m | 4.5 m | 5 m | 4 m | 4.5 m | 5 m | 4 m | 4.5 m | 5 m | |
| Working system | A3 | |||||||||
| Lifting speed | slow speed | 0.8 (m/min) | ||||||||
| normal speed | 8 (m/min) | |||||||||
| Circulate speed | 20 (m/min) | |||||||||
| Slewing angle | 180 ° | |||||||||
| Centre height | 1.2 m | 1.6 m | 2.56 m | |||||||
We are a leading manufacturer and supplier of Wall Mounted Cantilever Jib Cranes, dedicated to providing reliable, high-performance lifting solutions for a variety of industrial applications. All products are manufactured to stringent quality standards and are CE and ISO certified. With more than 20 years of export experience and a team of professional technicians, we can provide fully customized designs according to your specific working conditions, load requirements, and space constraints. From project consultation to after-sales support, we offer end-to-end services to help you optimize material handling efficiency. Contact us today for a customized solution and competitive quote.
