Product Description

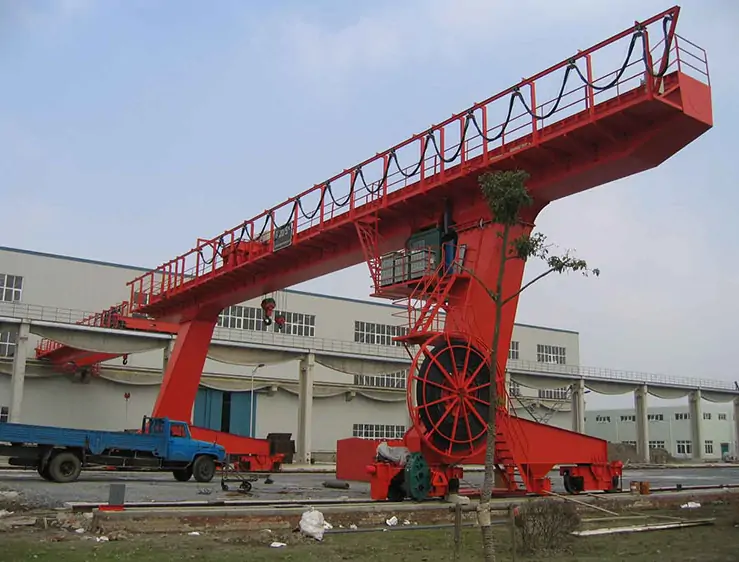

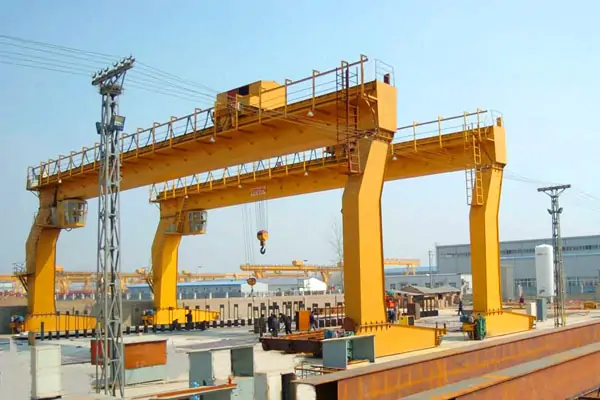

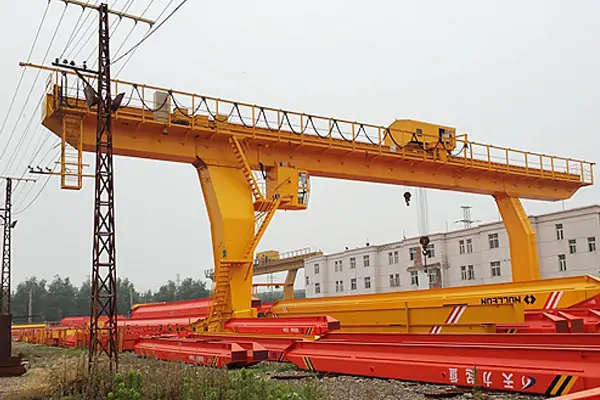

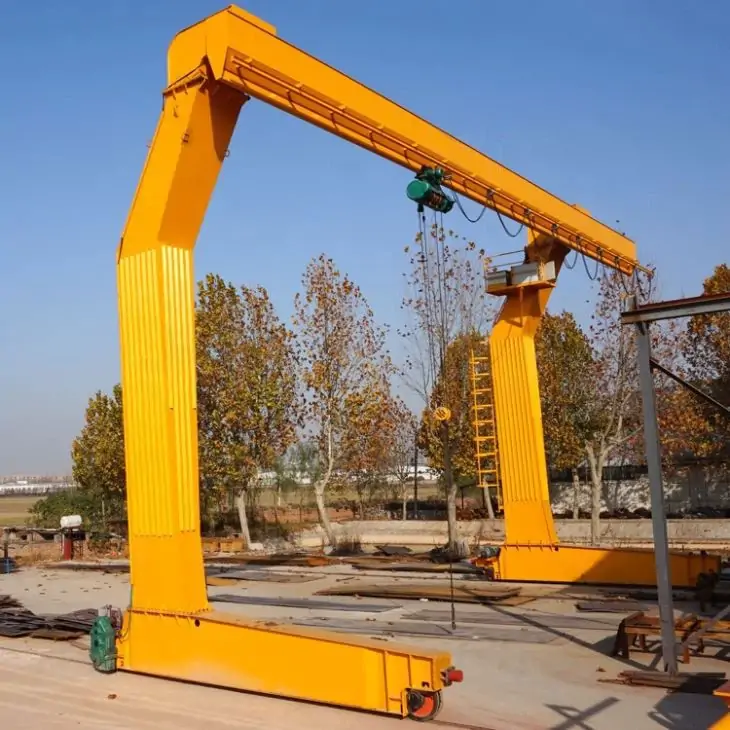

The L type gantry crane is a flexible and efficient single girder gantry crane for outdoor lifting of materials. The main beam, outriggers, and lifting mechanism are its core structure. The electric hoist is installed on the main beam as the lifting mechanism. And the lifting and lowering operation of the goods is realized by motor drive. The electric hoist has the characteristics of compact structure and easy operation. This type of gantry crane is a light duty gantry crane running on rails, and the applicable lifting capacity is 5-10 tons. It has unique applications in loading, unloading, or grabbing materials in open spaces and warehouses.

Advantages

• L-shaped single-girder design: Compared to traditional gantry cranes, L-shaped gantry cranes feature a single-girder offset track and L-shaped leg structure, offering greater lifting space and span capacity, making it easier to transport items from the center of the span to under the boom.
• Box-type gantry frame: Sturdy structure suitable for heavy-duty operations, with lifting capacities ranging from 5 tons to 50 tons.
• Functional Configuration: Can be equipped with an enclosed cab, remote control, or control panel, and optional auxiliary equipment such as air conditioning, electric fans, fire extinguishers, and walkie-talkies to enhance operational comfort and safety.
• Versatile load-handling capability: Suitable for handling goods of various weights, with a maximum lifting height of 12 meters and a span of up to 35 meters.
• Flexible mobility: Can be equipped with either track-mounted or wheeled mobility systems, suitable for various working environments such as factories, warehouses, and construction sites.
• Multiple safety protection devices: Equipped with limit switches, emergency stop buttons, overload protection, and other safety devices to ensure operational safety.

Application

L type gantry crane has various application fields.

• Port loading and unloading: Suitable for handling containers, bulk cargo, scrap steel, and other goods.
• Workshop and warehousing: Used for hoisting and transporting heavy machinery, steel, and other materials.
• Construction and logistics: Suitable for large component installation and logistics turnover operations.

Specifications

L Type Gantry Crane Supplier and Manufacturer

As an industry-leading manufacturer with over 20 years of experience, we offer comprehensive customized solutions, providing end-to-end services from design, production, to installation and commissioning. We have extensive project experience across various industries, including ports, logistics, and manufacturing, and provide comprehensive after-sales support, including maintenance, spare parts supply, and technical upgrades. For customized solutions or technical consultations, please feel free to contact us, and we will provide you with professional and efficient service!

Custom L Type Gantry Crane

If you wish to customize an L-type gantry crane, please provide the following specific information:

• Basic information: lifting capacity, span, lifting height
• Working environment: such as indoor/outdoor, corrosive, temperature, etc.
• Power requirements: such as voltage, frequency
• Special requirements: such as explosion-proof, remote control, automation, etc.
