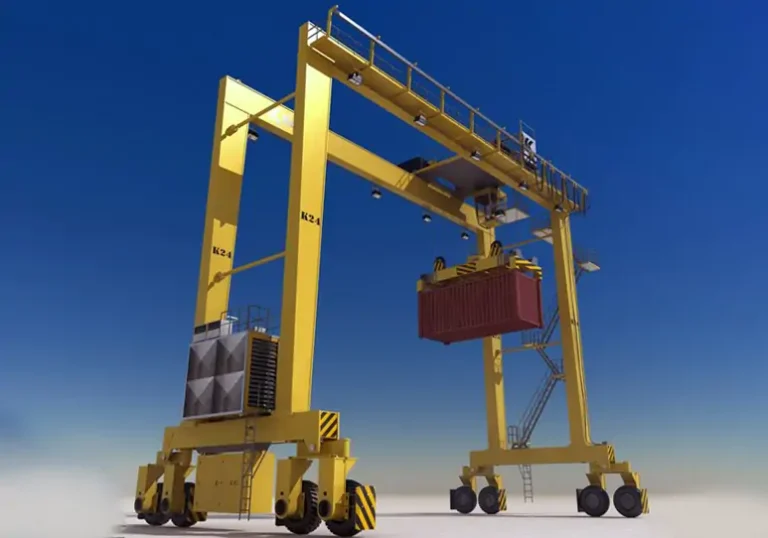

The RTG Rubber Tyred Gantry Crane is suitable for loading and unloading ISO containers at container yards or transfer stations such as ports, terminals and logistics.
RTG Rubber Tyred Gantry Crane (RTG Crane) is a flexible and high-performance lifting equipment widely used in container yards, precast beam yards, logistics centers, and wind power projects. It is designed to handle heavy loads such as containers, concrete beams, steel structures, and large components with high precision and efficiency.
Equipped with a mobile rubber-tyred structure, the RTG Rubber Tyred Gantry Crane can move freely without rail foundations, making it ideal for outdoor operations and variable work zones. It features advanced control systems, including cab control, wireless remote, or intelligent automation, ensuring stable, safe, and efficient operation.
Nucleon can custom design according to meet your specific lifting requirements, including lifting height, span, control mode, and configuration. Contact our engineering team today to get a tailored Rubber Tyred Gantry Crane solution for your project!
Advantages
Mobility: Equipped with wheels, it can move freely in the yard, quickly locate containers, and improve loading and unloading efficiency.
Handling capacity: Able to handle one or more standard containers at the same time, suitable for high-throughput terminals.
Versatility: The spreader is adjustable to accommodate different sizes and types of containers.
Height and reach: Large lifting height, wide coverage, and optimized storage space utilization.
Power options: Support diesel or electric drive, flexible choice, to adapt to different environmental and cost requirements.
Control system: Equipped with an advanced automation system, integrated anti-collision technology, and remote monitoring to improve safety and efficiency.
Weather resistance: Adopts corrosion-resistant materials and rubber tires to adapt to harsh environments, including marine conditions.
Cab design: Provides a clear vision, equipped with humanized controls and a climate system to enhance operator comfort.
Safety features: Integrated overload protection, emergency brake, and sound alarm to ensure safe operation.
Application
The RTG Rubber Tyred Gantry Cranes are mainly used in logistics nodes that require efficient and flexible handling of container storage and transshipment. The following is a description of the application scenarios:

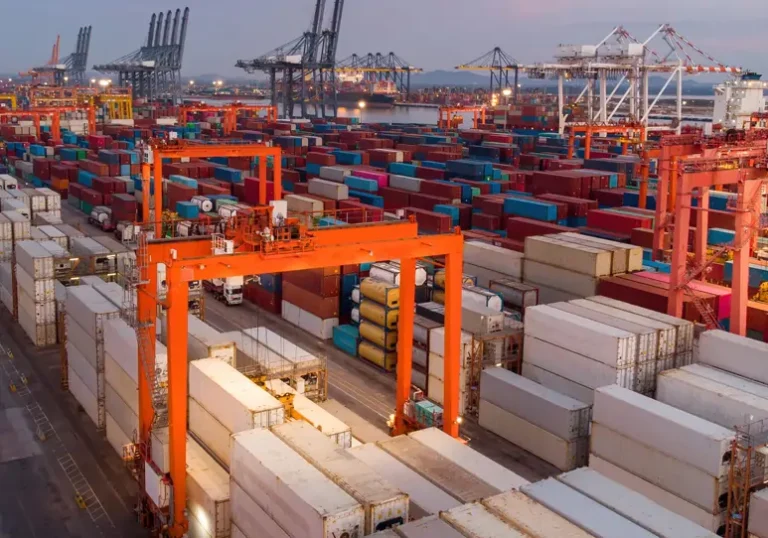

Ports & harbors (container loading or unloading and stacking).
Railway freight yards (intermodal transport of containers).
Container terminals (efficient cargo handling in logistics hubs).
Inland container depots (storage and sorting of containers).
Container repair and cleaning yard: Stacking and management of containers waiting to be repaired, under repair, or repaired/cleaned.
Empty container yard: Specialized for storing and managing a large number of empty containers. RTG's stacking capacity is very suitable for this scenario, which can maximize the use of limited site space.

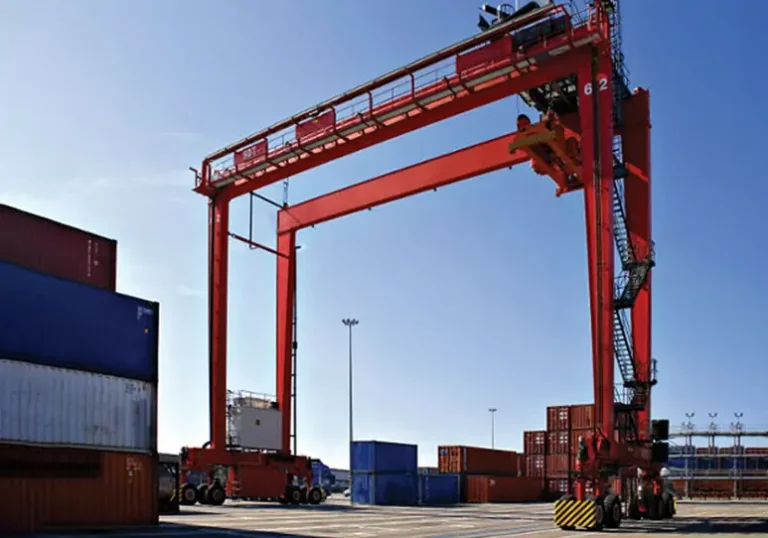

Rubber Tyred Gantry Crane for Lifting Shipping ContainersRubber Tyred Gantry Crane for Lifting Shipping ContainersRubber Tyred Gantry Crane for Lifting Precast Box GirdersRubber Tyred Gantry Crane for Lifting Precast Beams

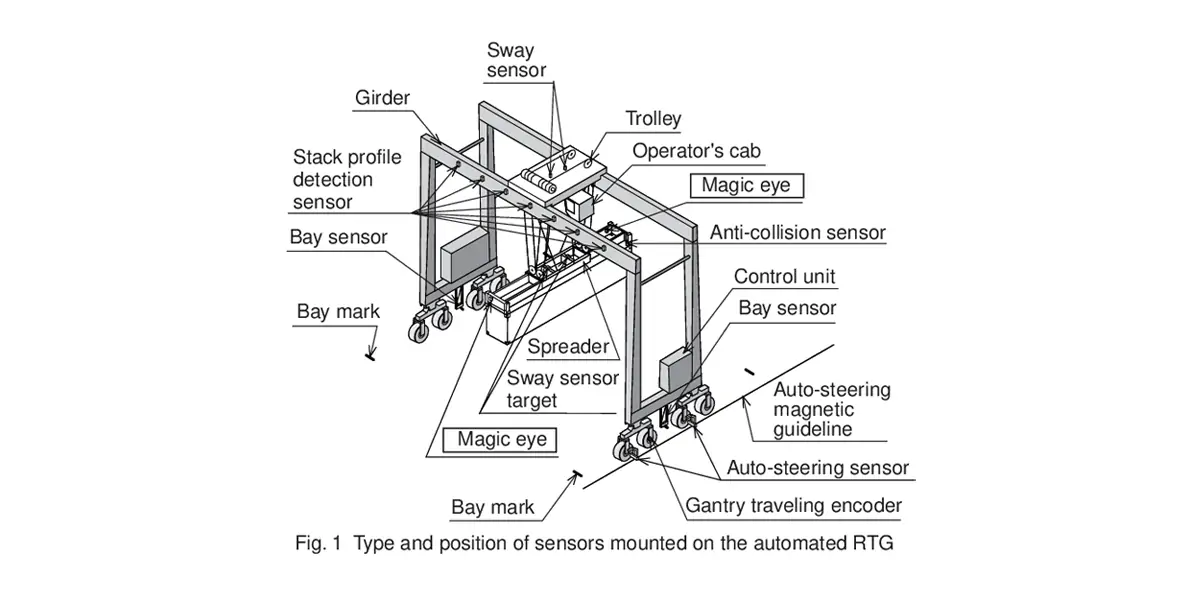

Rubber Tyred Gantry Crane Parts

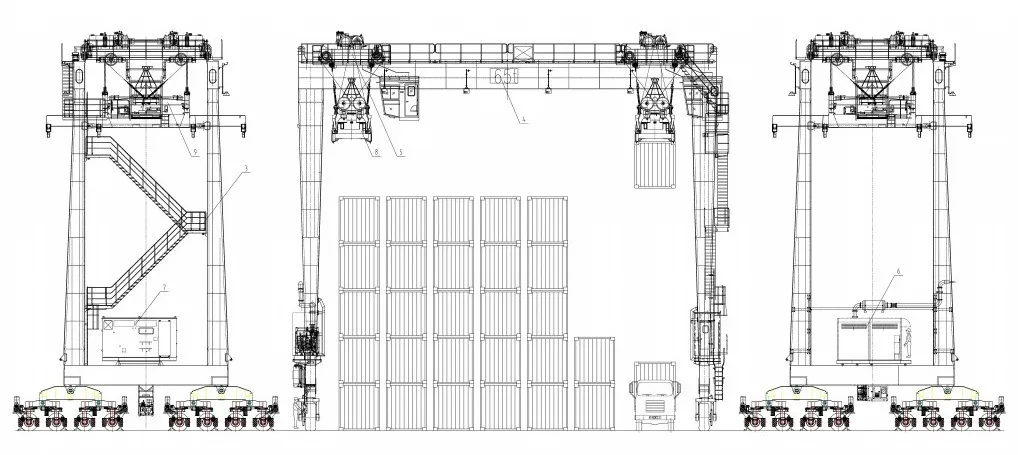

Rubber Tyred Gantry Crane structure mainly consists of a steel frame, hoisting mechanism, minimum slewing mechanism, spreader anti-sway mechanism, crane traveling mechanism, steering mechanism, trolley traversing mechanism, container spreader, diesel generator set, electrical equipment and safety appurtenances, and other key components.
Rubber Tyred Gantry Crane for Lifting Precast Beams
Function of a RTG Rubber Tyred Gantry Crane
The main function of a Rubber Tyred Gantry Crane is to lift, move, and stack heavy loads or containers in areas where rails are not available. It’s widely used in container terminals, precast yards, construction sites, and industrial storage areas for handling large and bulky materials efficiently.
Specifications
Nucleon offers a wide range of specifications for Rubber Tyred Gantry Cranes that can be custom-designed to meet specific needs. Key parameters include:
Capacity Of Spreader
T
30.5
35
40.5
Working Duty
A6
A6
A6
Span(M)
S
23.47
23.47
23.47
Base(M)
B
7.4
7.4
7.5
Lifting Height(M)
H
15.4
15.4
18.2
Speed
Hoisting
With Full Load
M/Min
12
12
23
Only With Spreader
24
24
46
Traverse
70
70
70
Traveling
With Full Load
45
45
45
Only With Spreader
90
90
90
Main Dimensions
L
25370
25370
25395
H1
22030
22334
25134
L1
905
905
905
L2
950
950
975
Total Power Of Diesel Motor
kW
~305
~305
~400
Total Power Of Generator
kVA
~518
~595
~720
Max. Working Load Of Wheel
kN
273
287
320
Customization RTG Rubber Tyred Gantry Crane
Nucleon Crane can according to your usage scenarios and requirements, provide customized RTG crane solutions.
Lifting capacity: from 20 tons to more than 100 tons, to meet the needs of different sizes and weights of containers.
Span: According to your yard layout and container arrangement, customize the most suitable span to optimize space utilization.
Lifting Height: Adapt to different stacking heights, from 1 layer to 6 layers or even higher, flexibly responding to various operating scenarios.
Power system: diesel generator set, lithium battery or hybrid power system can be selected to meet environmental requirements and cost control.
Automation: From manual operation to semi-automation and full automation, we provide a wide range of options to enhance operational efficiency and safety.
Special Functions: Customized special functions according to your specific needs, such as anti-shaking system, remote monitoring system, automatic positioning system and so on.
Rubber Tyred Gantry Crane Manufacturer
Nucleon is a professional Rubber Tyred Gantry Crane factory and supplier with 20 years' production and R&D experience. We are committed to providing efficient lifting equipment for container yards or transshipment stations such as ports, terminals and logistics.
Professional Team: Our engineering team has rich project experience and can provide you with professional consultation and customized solutions.
Quality service: We provide a full range of services from pre-sales consulting, design and manufacturing to installation, commissioning, and after-sales maintenance.
Contact Nucleon today for your customized RTG crane solution!
Certificate
FAQS
What is a Rubber Tyred Gantry Crane? A Rubber Tyred Gantry Crane is a mobile gantry crane mounted on rubber tires, designed for efficient container handling, precast yards, and outdoor material stacking operations. It offers flexible movement without the need for fixed rails.
What are the main applications of RTG Cranes? RTG cranes are widely used in container terminals, precast beam yards, logistics warehouses, steel yards, and wind power component handling.
What are the advantages of using an RTG Crane? RTG cranes feature high flexibility, precise control, low maintenance, and space efficiency. They can be customized for different lifting capacities and spans, providing a cost-effective solution for heavy lifting operations.
Can RTG Cranes be customized? Yes. We offer customized RTG cranes with various lifting capacities (10–200 tons) and spans (10–40 meters), along with optional systems like remote control, PLC automation, anti-sway technology, and energy-saving power systems to meet your specific project requirements.
