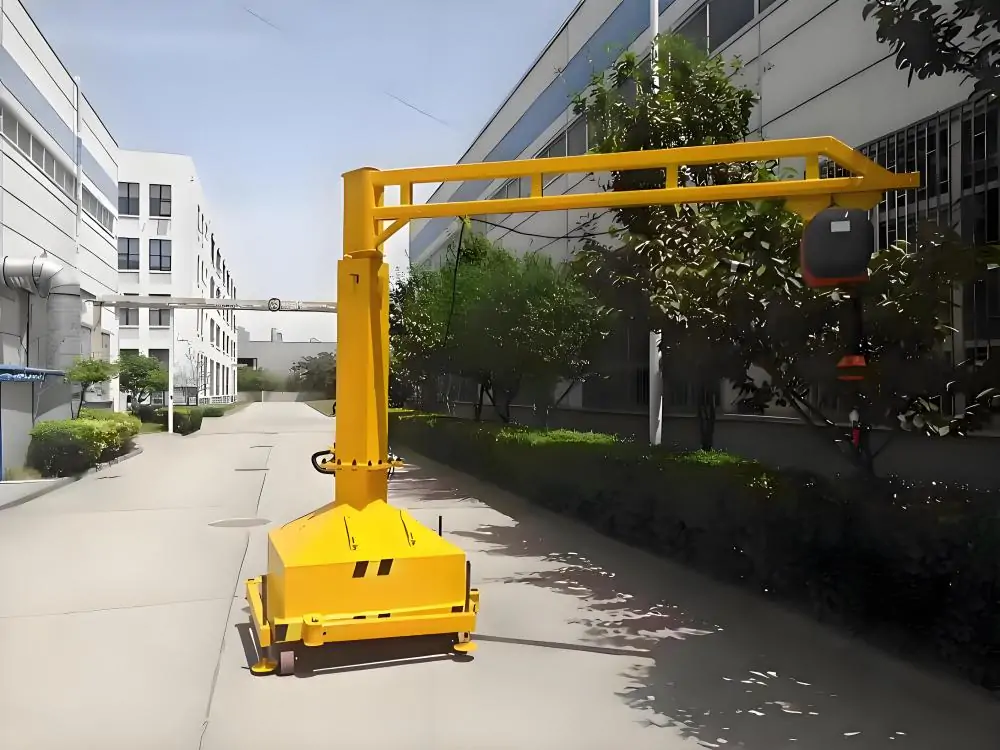

360° Mobile Portable Jib Crane

Product Description

The Portable Jib Crane is a highly flexible and movable small lifting equipment. It features a unique slewing cantilever design and is equipped with either an electric chain hoist or an electric wire rope hoist, enabling flexible operation over a 360° range. It is especially suitable for space-constrained areas, such as low-ceilinged spaces, warehouses, and other environments where traditional traveling cranes cannot be installed, and is ideal for workshop equipment installation, cargo handling, and other operations.

Portable Jib Crane Components

The portable jib crane on wheels is mainly composed of a column system, a slewing jib, a lifting device, a mobile base, a control system, and auxiliary components. The column system is made of high-strength steel, and the lower end is fixed on the movable base, equipped with a horizontal adjustment device. The slewing arm provides 270° or 360° rotation and supports both manual and electric slewing. The electric slewing is driven by a cycloid reducer to realize smooth rotation.

The lifting device consists of an electric chain hoist or an optional electric wire rope hoist mounted on the jib I-beam track with overload protection and precise positioning.
The mobile base is equipped with heavy-duty casters and a locking device for quick movement and positioning.
The control system is provided with an operating handle or wireless remote control, with frequency conversion speed control function and safety limit switch.
Auxiliary components include counterweight systems, anti-sway devices and lighting systems.

Advantages

Rated lifting capacity: 0.5~20 tons, covering light to heavy-duty operation requirements.
Boom length range: 2~10 meters, supporting customized design.
Model classification: BZ type (light/medium) and BZD type (heavy/medium).
Working temperature: -25°C~+40°C, adapting to a variety of environmental conditions.
Lifting mechanism: optional electric hoist or manual hoist to meet different operation requirements.
Slewing mechanism: equipped with an electric motor or manual control, flexible and convenient.
Main body material: High-strength Q235B manganese steel is used to ensure durability and stability.
Slewing angles of 90°, 180°, 270°, and 360° are available to adapt to different operating scenarios.

Application

The portable industrial jib crane has a unique structural design and portable characteristics, especially suitable for limited space, the need for frequent movement, or temporary lifting operations. Specific applications are as follows:

Production line applications: for automotive manufacturing, production line parts lifting, electronic product assembly line equipment handling, and heavy machinery assembly line workpiece positioning.
Workshop applications: for machine tool loading and unloading assistance, equipment maintenance support, and material turnover handling.
Warehousing and logistics applications: for warehouse cargo stacking, material loading and unloading operations, and shelf replenishment operations.
Terminal and harbor applications: small ship cargo handling, container cargo handling, terminal equipment maintenance, etc.

Products Show

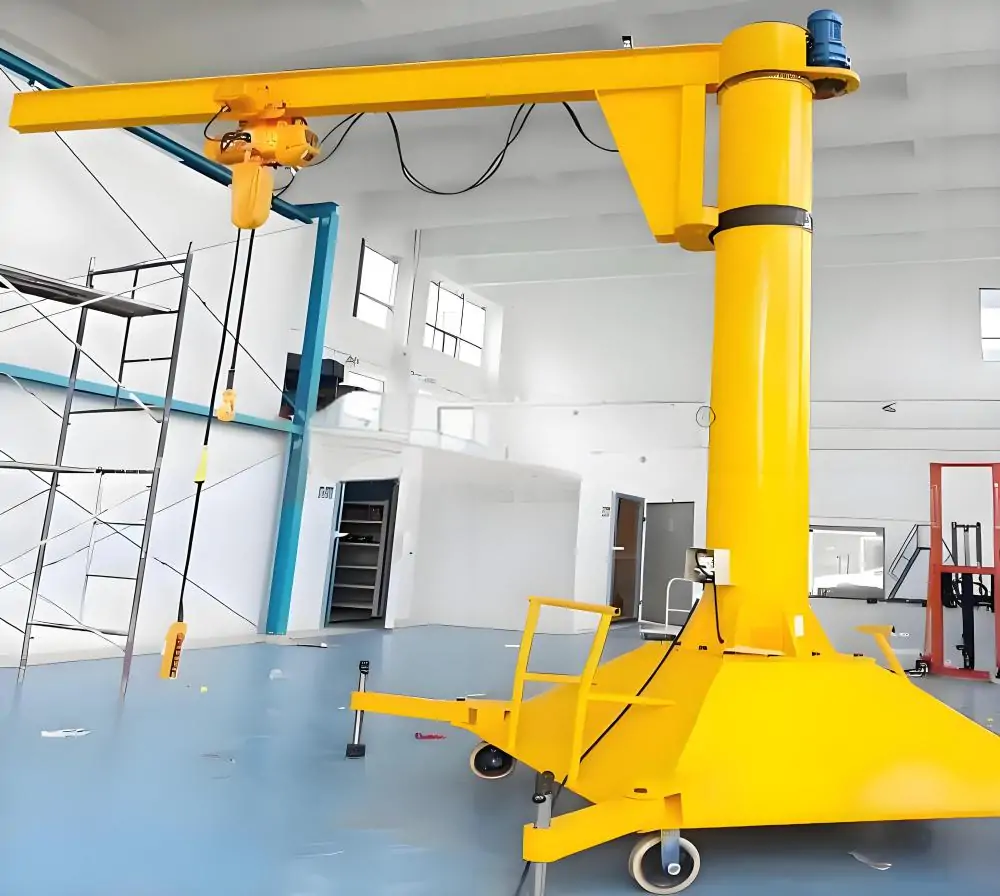

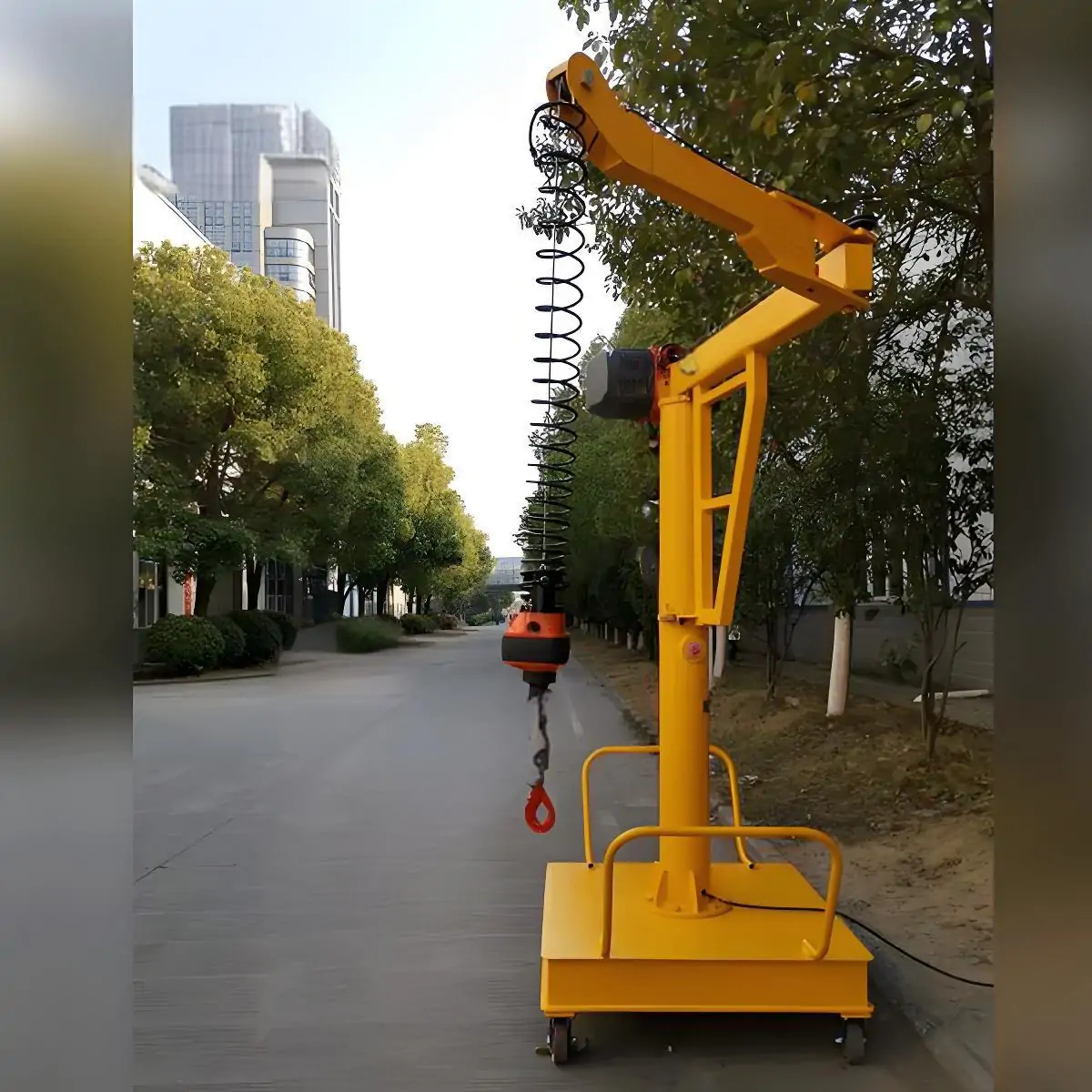

heavy duty portable jib crane — Portable Articulating Jib Crane

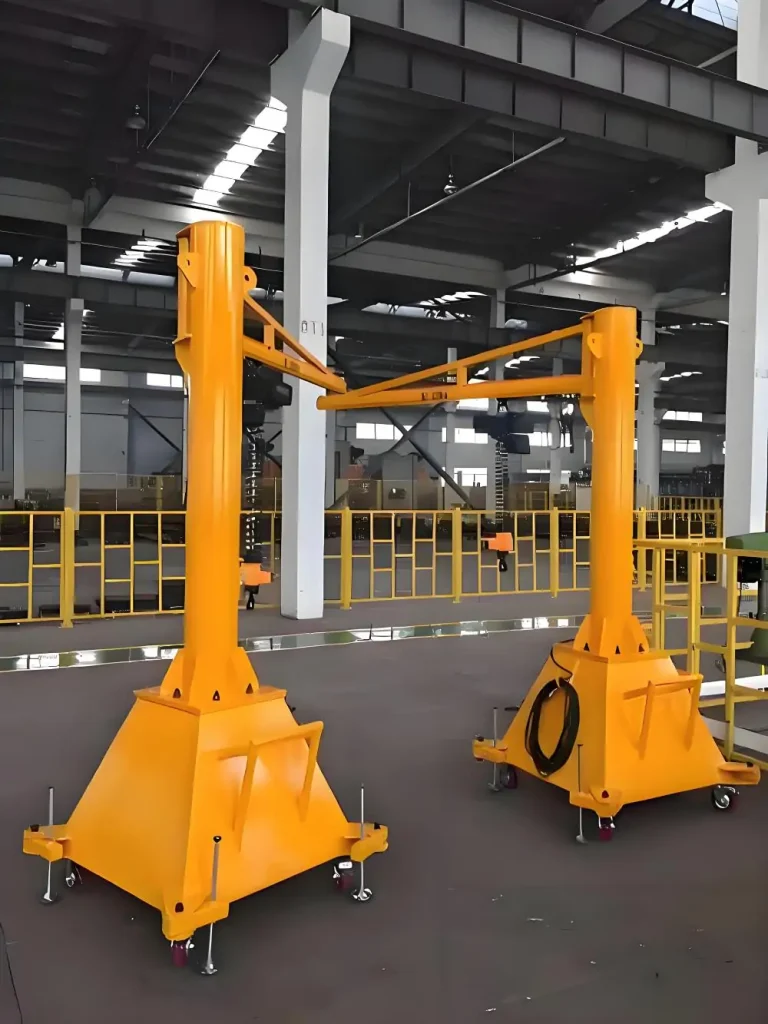

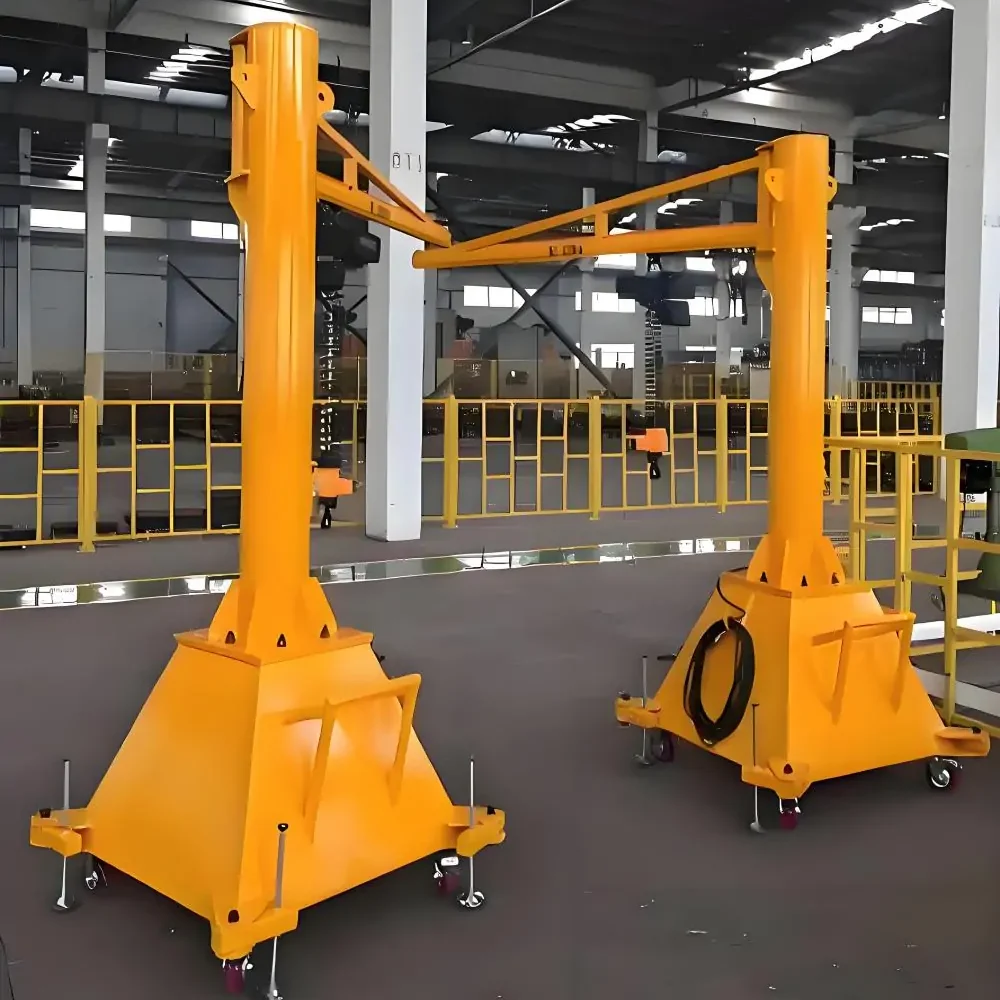

small portable jib cranes — Portable Articulating Jib Crane

Specifications

Lift capacity(T)			1, 2, 3, 5, 10, 16, 20
Span(M)			7.5-22.5
Mechanism traveling	speed(m/min)		10, 20, 30	45, 60
	motor	type	ZDY1 21-4	ZDR12-4
		power(kw)	2*0.8	2*1.5
		speed(r/min)	1380	1380
Electric chain hoist or wire rope hoist		model	CD1/MD1/HHBB
		lift height(m)	3/25
		traversing speed(m/min)	20,30 or can be customized
		lifting speed(m/min)	8(7); 8/0.8(7/0.7)
Workclassfication			A3-A5
Power supply			380V/50HZ or on request
