European Overhead Crane Nucleon

Product Description

The HD type European electric single-girder bridge crane features an electrical, lightweight, modular, and parametric design. Its lifting mechanism adopts the NR type wire rope electric hoist with superior performance and advanced technology. And its operating mechanism adopts the three-in-one drive device. It also has an advanced frequency conversion speed regulation control system.

The European overhead crane features advanced technology and is designed by international standards: DIN (Germany), FEM (Europe), and ISO (International). It offers advantages such as high rigidity, lightweight construction, and outstanding structural design, effectively saving factory space and investment costs. Its walking structure has unique characteristics.

HD Type European Single Girder Bridge Crane

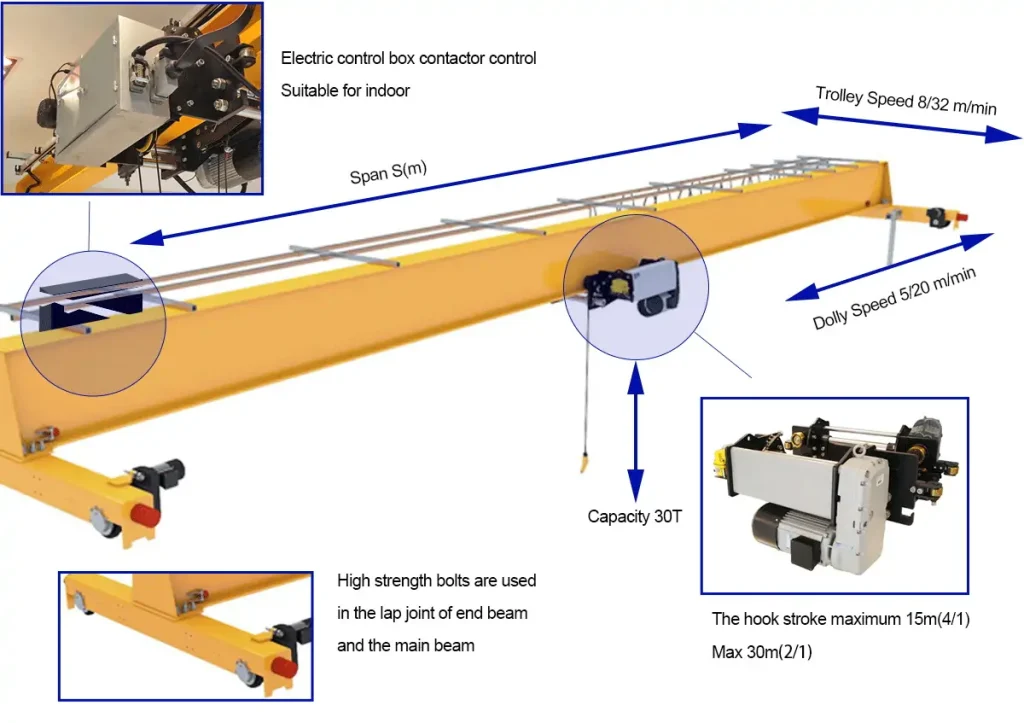

Components of European Single Girder Bridge Crane

The European Single Girder Bridge Crane primarily consists of a main girder, end beams, an electric hoist, and a running mechanism, constructed by welding steel plates and I-beams. It features a lightweight structure and convenient installation and maintenance.

Component Features:

Main Beam: The lower flange track is made of I-beam steel, providing a running path for the electric hoist to perform lifting operations.
End Beam: Welded to the main beam to form the bridge frame structure, supporting the overall structural stability during operation.
Electric Hoist: Moves along the I-beam steel of the main beam, equipped with a large-diameter drum to effectively increase lifting height and reduce lateral limit blind spots.
Drive type: Independent cone motor braking with open-gear transmission;
Operation modes: Supports three control methods: ground-based control handle, wireless remote control, and cab (open/closed options available).

Application

European single-girder bridge crane is suitable for lifting and handling in workshops, warehouses, and power stations. It could handle different lifting tasks with efficiency. But it is also important to remember not to use it in the environment of flammable, explosive, and corrosive media. It could improve your working efficiency and solve your lifting problems.

Product Features

Compact structure, small limit size: space-saving and easy installation
Frequency conversion speed regulation, smooth operation, and greatly improved efficiency.
Perfect protection device, safe and reliable: ensuring the safety of equipment and operation.
Integrated drive, energy efficient: energy saving and reducing daily cost.
Silent drive, low noise, and environmental protection: making a comfortable working condition.

Specifications

Lifting Capacity	1t~20t
Span	3m~34.5m
Lifting Height	6m~30m
Lifting Speed	5/0.8m/min
Long traveling speed	3~30m/min
Cross traveling speed	2~20m/min
Power supply	AC 380V 50Hz
Working Class	A5

Custom European Single Girder Bridge Cranes

European single-girder overhead travelling cranes can be customized to meet specific customer requirements. If you have specific requirements, please provide the following information, and we will customize the best solution for you:

Lifting capacity, span, lifting height
Running speed and control method
Whether low headroom or dual speed function is required
Target country (affects voltage and certification)

European Single Girder Bridge Crane Supplier

Nucleon is a leading supplier specializing in the research, development, and production of European standard single-girder overhead cranes. We possess advanced FEM/ISO standard design capabilities and high-strength steel structure manufacturing processes, offering a full range of solutions from standard models to special customizations (such as low headroom, explosion-proof, and intelligent monitoring). We strictly adhere to European CE/ISO certification standards and maintain a global service network to ensure timely delivery and lifetime technical support.

We can provide the optimal crane solution tailored to your needs, including lifting capacities from 1 to 32 tons and spans from 5 to 35 meters, with features such as dual-speed/variable frequency control. Whether for workshops, warehouses, or special operating conditions, we offer safe and efficient customized solutions. Welcome to contact us via email [email protected] or WhatsApp for free solution consultation and quotation services.
