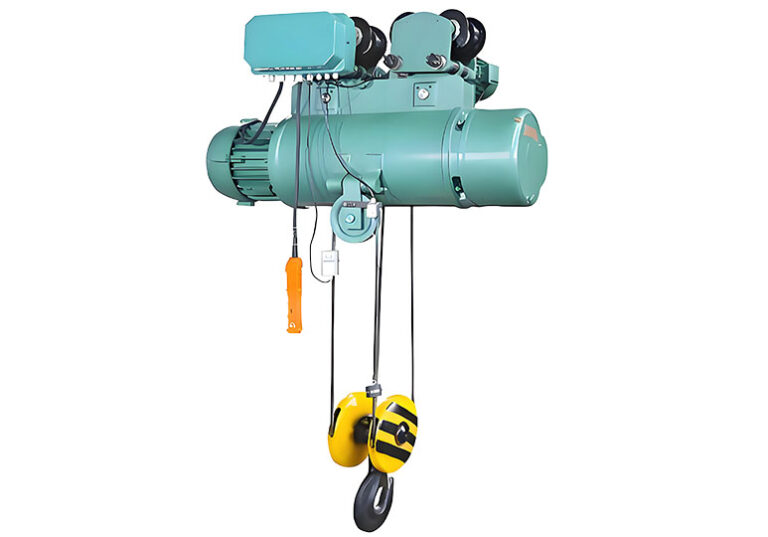

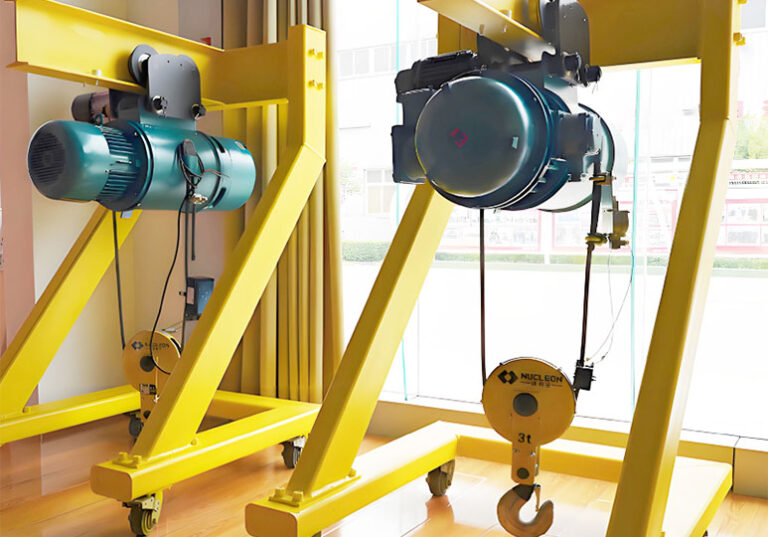

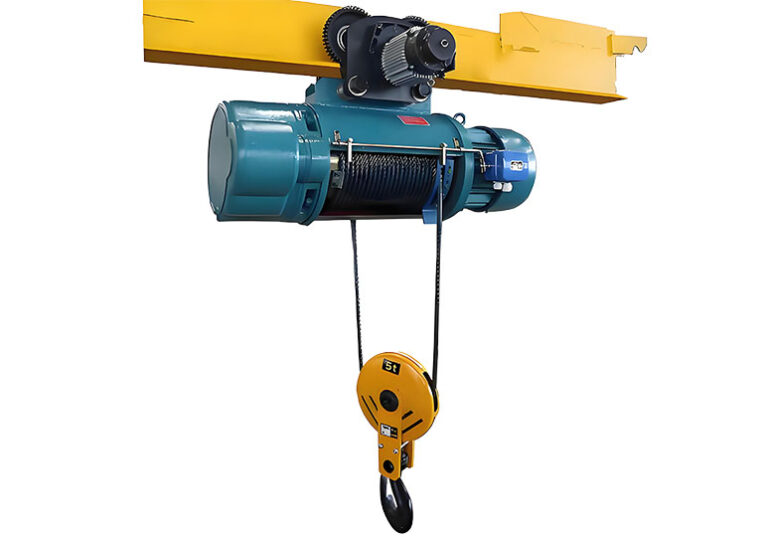

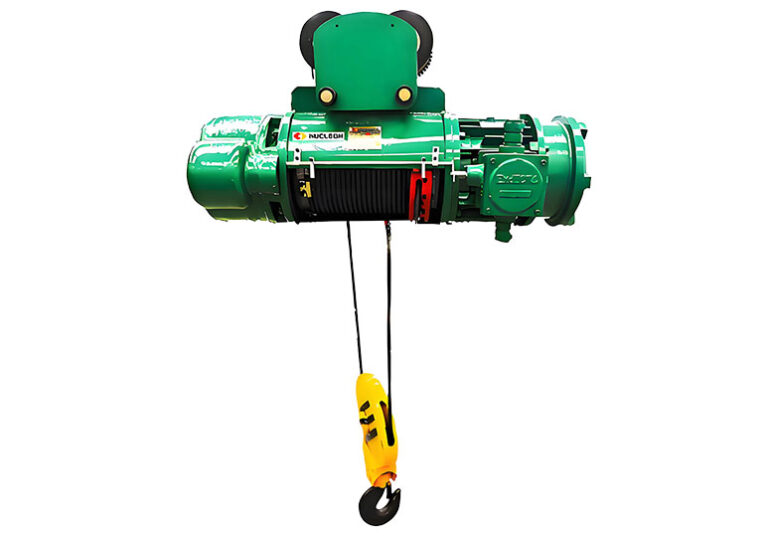

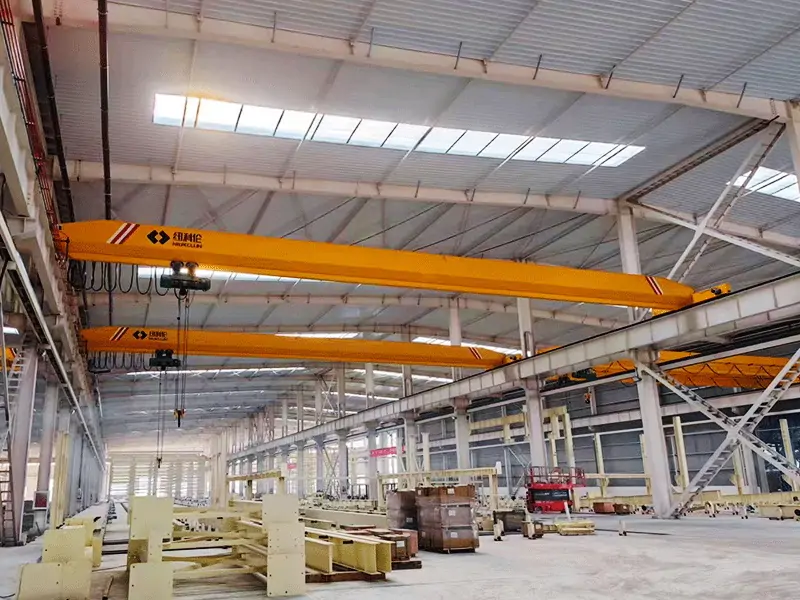

Model CD MD Wire Rope Electric Hoist is a small-sized lifting equipment. Normally we put it on single beam bridge crane, gantry crane and jib cranes.
Model CD MD Wire Rope Electric Hoist is a small-sized lifting equipment. Normally, we put it on single-beam bridge cranes, gantry cranes, and jib cranes. With slight modification, it can also be used as an electric winch machine. It has a wide range of applications, like in factories, mines, harbors, warehouses, cargo storage areas, and shops, essential in improving working efficiency and working conditions.
Model CD Electric Hoist has only one normal speed, which can satisfy normal applications. Model MD Electric Hoist provides two speeds, normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc..
To meet the needs of lifting heavier cargo, our factory also manufactures HC16t, HC20t, HC32t, SHC40t, SHC50t, and SHC63t electric hoists. We have a professional engineering team to provide clients with customized service. By having specified requirements, you could get a tailored design solution for your lifting problems.
Fast and stable lifting, speed up to 8m/min, can efficiently complete the routine lifting operations.
Reliable braking to ensure lifting safety, reasonable structural design, stable performance.
Simple operation, easy to start, reduce training cost and operation difficulty.
The use of high-strength steel, durable and corrosion-resistant, to extend the service life.
Compact design, small footprint, easy to install and use, especially suitable for places with limited space.
Precise gear transmission, smooth operation, reduce vibration and noise.
A variety of installation methods are available, such as suspended, fixed, etc., adapting to different I-beam rails and cranes.
Stable operation in indoor and outdoor environments, strong adaptability.

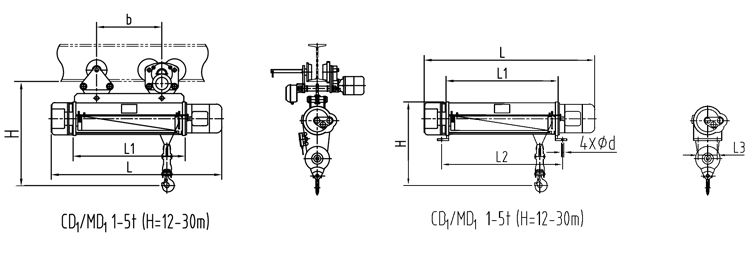

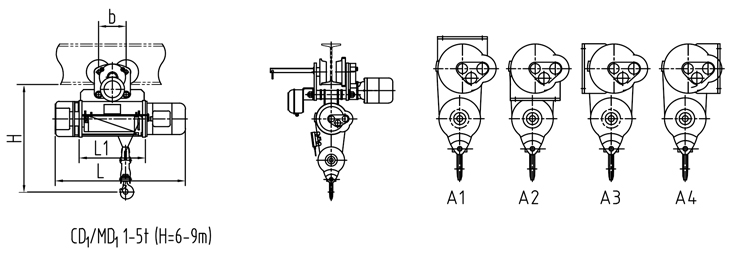

| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Travelling Speed (m/min) | Power Supply |
|---|---|---|---|---|---|
| CD1-0.5 | 0.5 | 6–30 | 8 | 20 | 380V/50Hz/3Ph |
| CD1-1 | 1 | 6–30 | 8 | 20 | 380V/50Hz/3Ph |
| CD1-2 | 2 | 6–30 | 8 | 20 | 380V/50Hz/3Ph |
| MD1-1 | 1 | 6–30 | 8 / 0.8 | 20 | 380V/50Hz/3Ph |
| MD1-2 | 2 | 6–30 | 8 / 0.8 | 20 | 380V/50Hz/3Ph |
| CD1/MD1-5 | 5 | 6–30 | 8 / 0.8 | 20 | 380V/50Hz/3Ph |
(Customized lifting heights and voltage available upon request.)
The CD1 steel wire rope hoist is designed with a single lifting speed of 8 m/min, ensuring stable and efficient material handling for general lifting operations.
Its simple and robust design makes it ideal for continuous use in factories, workshops, and warehouses.
With reliable performance and smooth lifting motion, the CD1 electric hoist provides a cost-effective and dependable solution for daily industrial lifting tasks.
The CD1 hoist adopts a standard electrical control system that ensures safe and stable operation.
Equipped with upper and lower limit switches, overload protection, and emergency stop function, it guarantees operational safety during long-term use.
The control system offers precise and responsive operation, allowing the user to easily start, stop, and lift loads smoothly.
An optional pendant control or remote control can be provided according to the working environment and user preference.
The CD1 electric hoist is built using high-quality components and manufactured under strict quality standards.
It features a high-efficiency motor, providing strong power with low energy consumption and smooth starting performance.
The high-tensile galvanized steel wire rope ensures excellent wear resistance and long service life, while the low-noise gear reducer offers high transmission efficiency and quiet operation.
Every hoist is 100% tested before delivery, ensuring compliance with international standards (ISO / CE) and guaranteeing reliable performance and durability.
We also provide comprehensive after-sales service and technical support to ensure long-term safe operation.
With 8m/min fast and 0.8m/min slow lifting speed, fast to improve efficiency, slow to realize the precise work, such as fine loading and unloading, and equipment commissioning. The dual-speed function improves work quality and productivity, and increases economic benefits.
Adopting intelligent electrical control technology, precise control of operating parameters, with a variety of safety protection functions.
The optional remote operation function facilitates operation in a special environment or a dangerous area.
Selection of high-quality components, high efficiency and energy saving motor, smooth starting, high transmission efficiency, low noise of reducer, high strength and wear-resistant steel wire rope. Strict quality testing, in line with standards, and perfect after-sales service.
The CD1 and MD1 electric wire rope hoists are widely used in:
Q1: What is the difference between CD1 and MD1 hoists?
A1: CD1 has a single lifting speed (8 m/min), while MD1 offers dual speeds (8/0.8 m/min) for more precise load handling.
Q2: Can I customize the lifting height or voltage?
A2: Yes, we provide customized lifting height (6–30m or more) and voltage options (220V/380V/415V).
Q3: Is the hoist suitable for outdoor use?
A3: Yes, but we recommend adding a rain cover and anti-corrosion treatment for outdoor environments.
Q4: How to ensure safety during operation?
A4: Each hoist is equipped with overload limiters, emergency stop systems, and upper/lower limit switches.
Q5: What industries use CD1/MD1 hoists the most?
A5: They are widely used in factories, warehouses, construction, logistics, and machinery manufacturing.
