Steel Coil lifting Hook- Nucleon Crane

Product Description

The C type steel coil lifting hook is a highly efficient equipment specially for handling and lifting steel coils. Its structure and design fully consider safety, efficiency, and ease of operation.

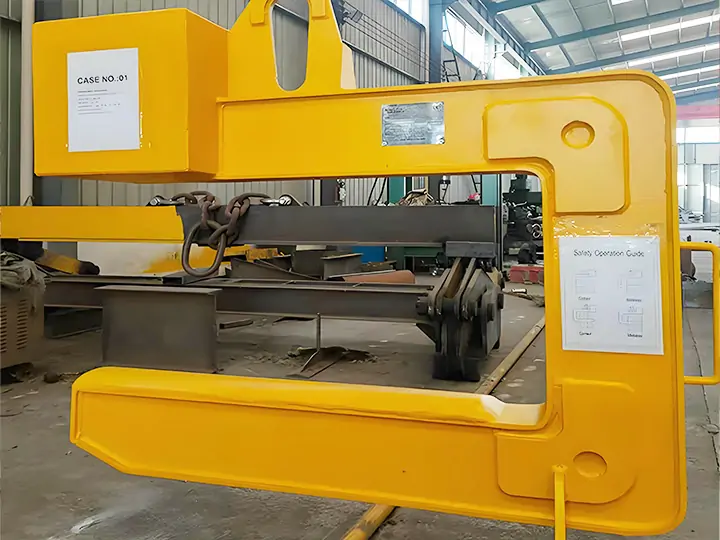

The C-hook is the core part of the spreader. Its shape is like an inverted "C". This design enables the hook to fit tightly on the outer edge of the steel coil, ensuring that the steel coil remains stable and not easy to slip during the lifting process. The steel coil lifting hook is made of high-strength alloy steel. This material not only has excellent tensile strength, but also effectively resists wear and tear, extending the service life of the equipment.

This steel coil hook focuses on improving work efficiency and safety. Its design takes into account the need for quick hooking and unhooking, allowing operators to quickly complete the installation and unloading of the spreader, improving work efficiency. This type of hook has an automatic locking mechanism and an overload protection system. The automatic locking mechanism can automatically adjust and lock the position during the lifting process to ensure that the steel coil will not fall off accidentally. And the overload protection system can sound an alarm or stop operation when the load exceeds the rated value to prevent safety accidents caused by overload.

The C-type steel coil lifting hook also has certain flexibility and adaptability, and can be used for steel coils of different sizes. Nucleon offers customization design for clients.

Application

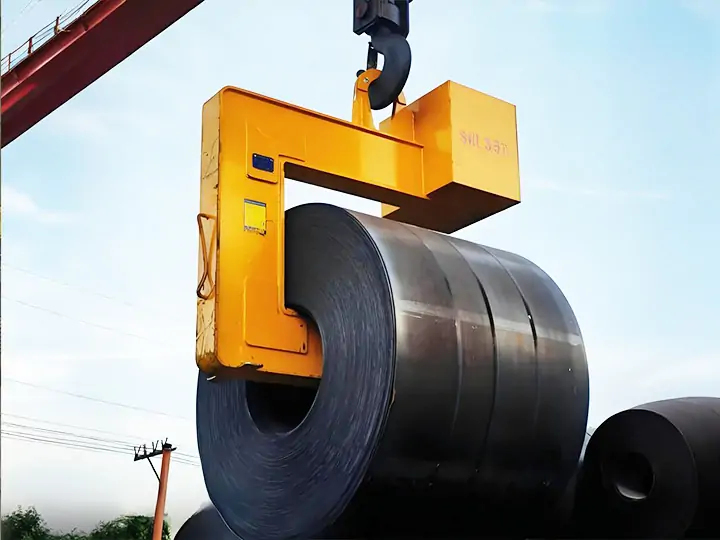

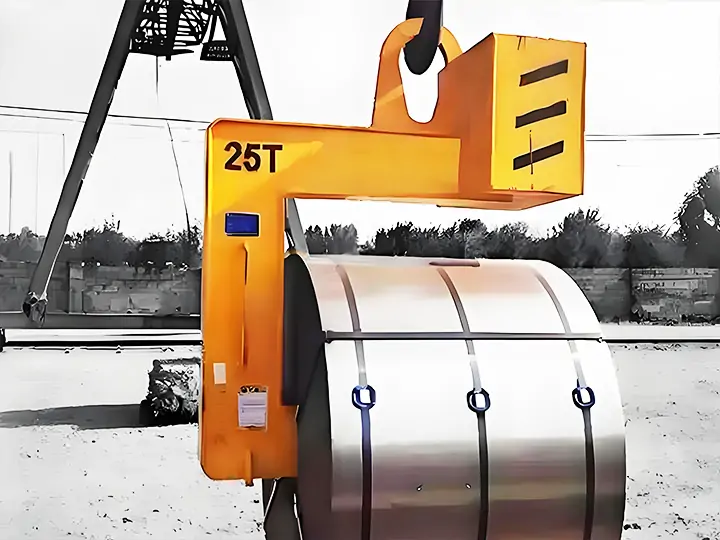

The C-type steel coil lifting hook is a lifting steel coil special tool. It is used in steel production, logistics, and manufacturing industries. Specific application scenarios include:

Steel Manufacturing Industry: In steel mills, it can efficiently and safely move finished or semi-finished steel coils on the production line. Whether hot-rolled or cold-rolled steel coils, they can be stably lifted and transported to the designated location.
Warehousing and Logistics Center: For warehouses that store a large number of steel coils, the use of C-type steel coil lifting hook can greatly improve the efficiency of cargo loading and unloading. Its design enables operators to complete the hooking and unhooking of steel coils in a short time, speeding up material turnover and improving overall operating efficiency.
Metal Processing Enterprises: This hook also plays an important role in enterprises that further process steel coils (such as cutting, stamping, etc.). It can ensure the safe and rapid transfer of steel coils between different processes and also ensure the continuity of the production process.
Port Terminals: For ports with steel import and export business, C type steel coil lifting hook is used to load and unload steel coil cargo from ships, ensuring that these heavy cargoes can be loaded and unloaded stably and efficiently.
Construction sites: In large-scale construction projects, especially those that require a large amount of reinforced concrete structures, C-type coil lifting hooks can move and place steel coils as raw materials, providing necessary material support for construction sites.
Special working conditions: with regards to high temperature, explosion-proof, corrosive, low temperature logistics, and other special environments. Can use stainless steel, corrosion-resistant, and other special steel C-type steel coil lifting hooks.

Advantages

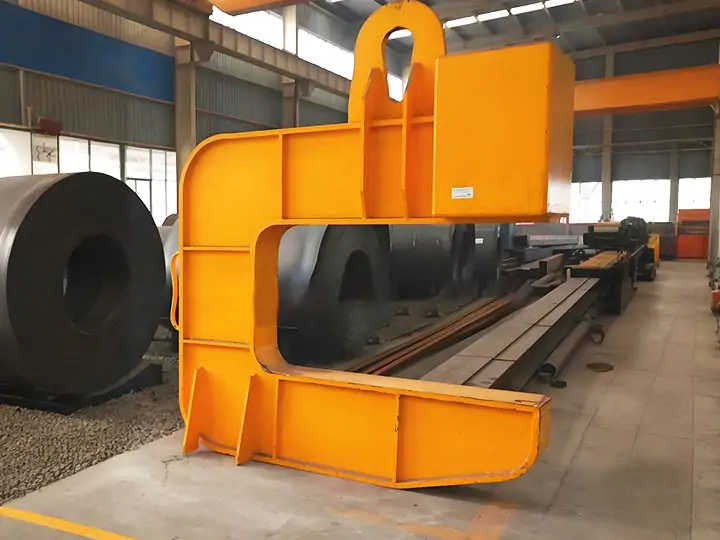

Solid structure: The main body is in the shape of the letter "C" and is cast from high-strength alloy steel, with strong bending and tensile resistance.

Customizable size: The opening width is suitable for steel coils with different inner diameters within a certain range, and some models support customization of specific inner diameters.

High safety: Equipped with self-locking pins, tipping stops, or friction pads to prevent the hook from slipping off and enhance operational safety.

Improve production efficiency: No need to wrap slings or adjust spreader, saving more than 50% time compared to traditional spreader, suitable for frequent lifting scenarios.

Strong applicability: C-type steel coil lifting hook can be used on overhead cranes, gantry cranes, and metallurgical casting cranes. It is widely used in steel mills, ports, logistics warehouses, and factories, and can adapt to complex environments such as ground, high altitude, and cabins.

Excellent stability: The center of gravity is vertically aligned with the lifting point to ensure stable and horizontal lifting of the steel coil, reducing the loss of the steel coil due to collision.

Specification

Load Capacity	Coil Width mm	Coil diameter mm	Dimensions mm
Load Capacity	Coil Width mm	Coil diameter mm	A	B	C	D	H	R
5t	750~900	≥ 400	900	1225	200	1144	500	60
	900~1100	≥ 500	1100	1450	200	1330	600	60
	1100~1300	≥ 500	1300	1670	200	1330	600	60
10t	750~900	≥ 500	900	1290	300	1555	650	90
	900~1120	≥ 500	1120	1555	300	1768	850	90
	1100~1300	≥ 500	1300	1758	300	1722	750	90
	1300~1500	≥ 500	1500	1955	300	1854	850	90
16t	900~1100	≥ 600	1100	1540	310	1850	850	90
16t	1100~1250	≥ 600	1250	1710	310	1870	850	90
25t	900~1100	≥ 600	1100	1570	370	1982	860	110
25t	1100~1300	≥ 700	1300	1810	370	2058	860	110
32t	1400~1660	≥ 700	1660	2240	550	2450	850	130

Customize Steel Coil Lifting Hook

Nucleon Crane can provide customized C-type steel coil lifting hook according to your application requirements. For example, the inner diameter of the steel coil, special usage scenarios, specific materials, etc., can all be customized.

If you have any specific requirements or need further assistance, please feel free to contact our team of experts. Nucleon will provide you with professional solutions.
