Beschreibung des Produkts

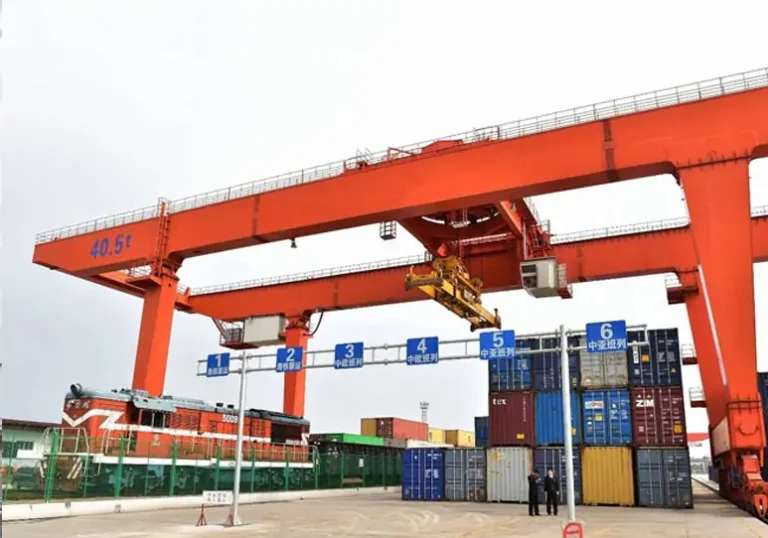

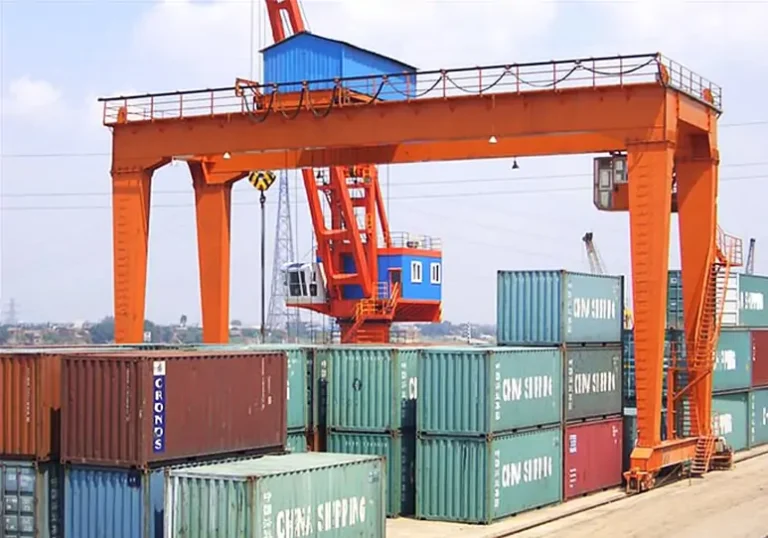

Rail-mounted container gantry cranes (RMG) run on rails using multiple sets of steel wheels and are driven by electric power. They are widely used in container yards or transfer stations in ports, terminals, railroads, and logistics centers, and are capable of efficiently handling and loading and unloading of ISO standard containers as well as railroad-wide containers. The RMGs are featured with multi-functionality, high efficiency, stable operation, ease of operation, and maintenance etc. They are also equipped with comprehensive safety indicators.

Nucleon specializes in providing a wide range of container handling gantry crane​s, including top slewing (trolley slewing) and bottom slewing (spreader slewing) designs, with optional cantilevered or non-cantilevered configurations, as well as customized models for railroad scenarios. Our products can be adapted to various general or specialized container spreaders, meeting the lifting needs of standard and non-standard containers in diverse operating environments. This provides customers with flexible and efficient solutions.

Container Gantry Crane Parts

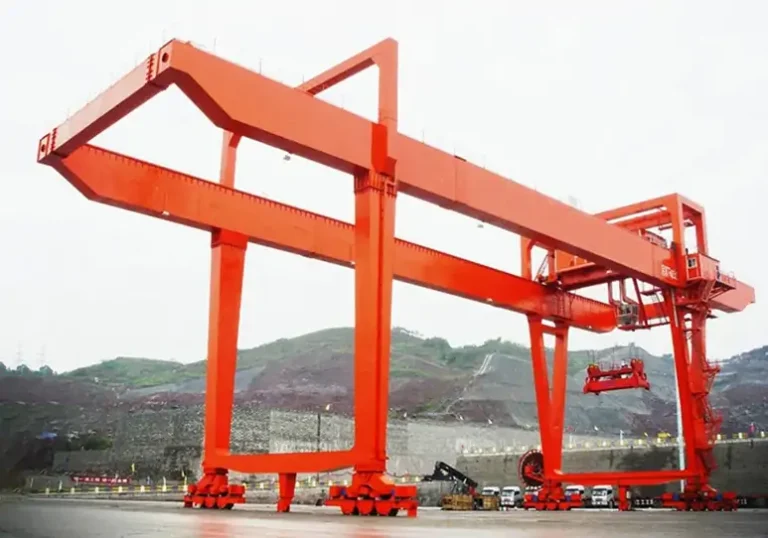

RMG rail-mounted container gantry crane adopts double main girder gantry structure, supported by several steel wheels, and equipped with single trolley winch system (optional mobile driver's room). The entire machine primarily consists of a gantry structure, hoisting mechanism, trolley running mechanism, power supply system, and special container spreader, as well as other components.

Spezifikationen

Eigenschaften

• High-load handling capacity: Specifically designed for container handling, it features strong load-bearing capacity and can efficiently handle standard containers such as 20ft, 40ft, and 45ft, meeting the demands of heavy-duty logistics operations.
• Precise positioning and anti-sway control: Equipped with an intelligent positioning system and anti-sway technology, it ensures rapid and stable alignment of the lifting equipment, reduces swaying, and enhances loading and unloading efficiency.
• Automated and intelligent operation: Supports automatic stacking, intelligent path planning, remote monitoring, and other functions, reducing manual intervention and achieving efficient automated operations.
• Robust and durable structure: Constructed with high-strength steel and optimized design, it offers excellent wind and earthquake resistance, suitable for long-term use in harsh environments such as ports and terminals.
• Energy-saving and environmentally friendly technology: Utilizes variable frequency drives and energy recovery systems to reduce energy consumption and carbon emissions, aligning with modern green port operation standards.
• Flexible Adaptability to Various Scenarios: Can be configured with rubber tires (RTG) or rail-mounted (RMG) options to meet the needs of different scenarios such as yards, railway hubs, and logistics centers.

Videos

Anmeldung

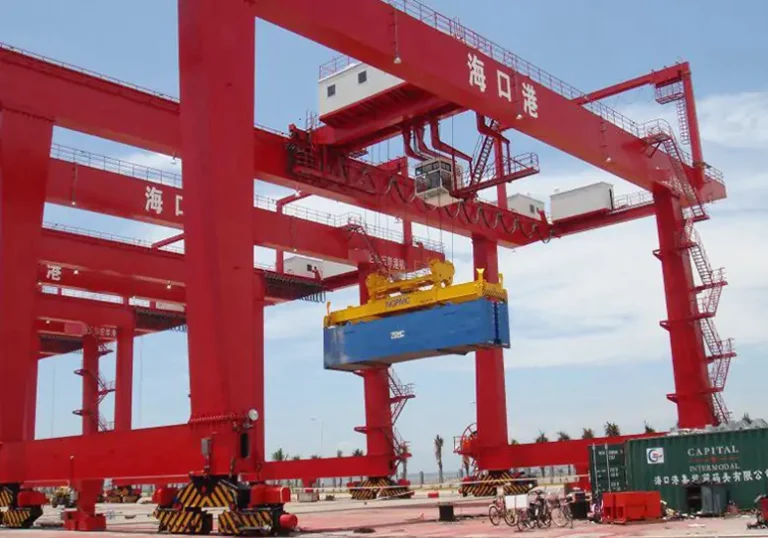

• Häfen und Umschlagbahnhöfe: RMGs werden häufig in Containerhäfen und Umschlagbahnhöfen eingesetzt, um Container schnell zu stapeln und umzuladen, die Raumnutzung zu optimieren und die betriebliche Effizienz zu verbessern.
• Eisenbahn-Güterbahnhöfe: In Güterbahnhöfen kann RMG breite Container effizient umschlagen, die effiziente Verbindung zwischen Schienen- und Straßentransport unterstützen und die Anforderungen des intermodalen Transports erfüllen.
• Lagerhaltung und Vertriebszentren: RMGs werden häufig in großen Lager- und Distributionszentren eingesetzt, wo das Be- und Entladen sowie das Stapeln von Containern schnell und präzise durchgeführt werden kann.
• Industrielle Einrichtungen: RMG kann an die spezifischen Anforderungen von Industrieanlagen angepasst werden und bietet zuverlässige und effiziente Lösungen für das Be- und Entladen von Containern, um verschiedene industrielle Anwendungsszenarien zu erfüllen.

Custom Container Gantry Crane

Nucleon bietet maßgeschneiderte Lösungen für die unterschiedlichen betrieblichen Anforderungen einer breiten Palette von Branchen.

• Span, Lift Height and Lifting Capacity: The span, lift height, and lifting capacity of a rail-mounted container gantry crane can be fully customized.
• Power options: Different power options can be selected, including electric or hybrid systems.
• Intelligent systems: Optional features such as automatic positioning, intelligent container transfer, and advanced anti-sway systems are available to improve accuracy and efficiency.
• Operating modes: Manual, semi-automatic, fully automatic, and remote control options are available.

Professional container gantry cranes manufacturer and supplier

Nucleon has over 20 years of manufacturing and project experience, dedicated to providing customers with efficient, reliable, and customized rail-mounted gantry crane solutions. We have a team of experienced professional engineers who are well-versed in the technical details and diverse application requirements of RMG cranes. Whether it's efficient container handling in ports or precise material transportation in manufacturing plants, we can provide tailored designs that precisely meet your needs. Feel free to contact us anytime for customized solutions and quotes.
