Project Overview

In May 2025, Nucleon successfully delivered a 500-ton boat lifting gantry crane to a well-known shipyard in Malaysia, which the customer uses for handling large yachts and fishing boats in its coastal maintenance facilities. Below is the specific information about the project:

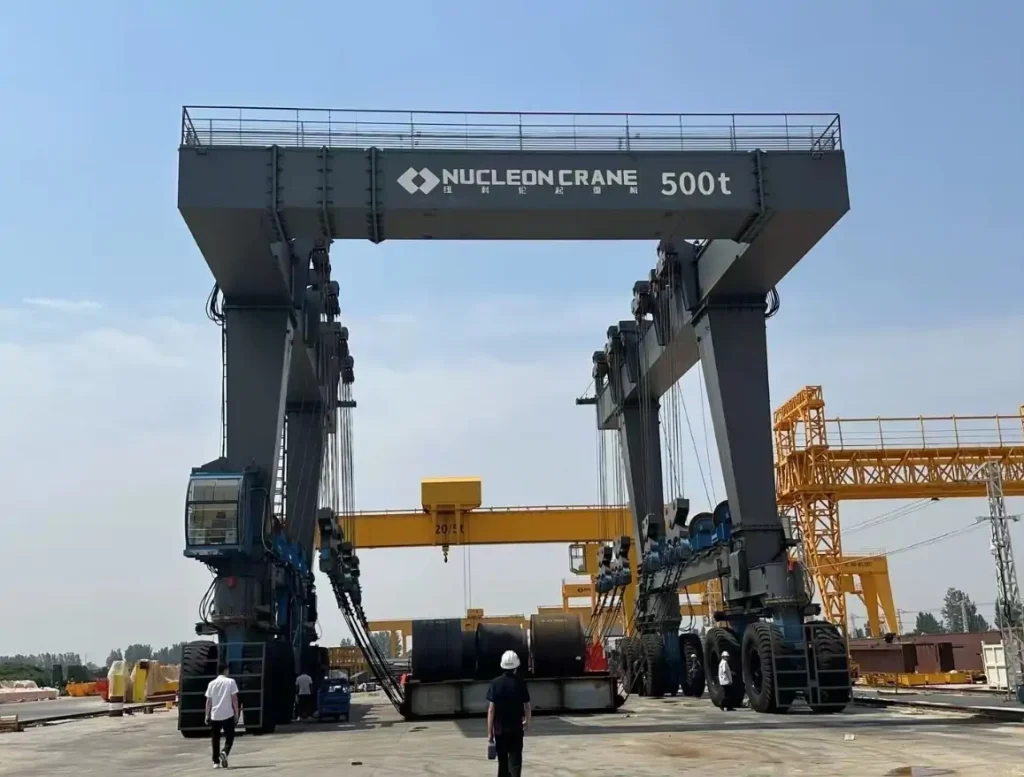

500 Ton Boat Lift Gantry Crane Exported to Malaysia (1)

Customized Solution

To meet the customer's needs for efficiency, durability, and adaptability, we recommended a 500-ton boat lift gantry crane equipped with advanced hydraulic and electrical control systems. The boat lifting gantry crane features a U-shaped open structure that allows it to straddle and lift vessels of various widths easily. Considering the coastal climate of Malaysia, all key components are treated with anti-corrosion coating, and stainless steel fittings are used to ensure long-term stable operation.

Use of Boat Lift Gantry Crane :

  • Launching and recovery of yachts up to 50 meters in length.
  • Moving vessels from the dock to the repair yard.
  • High frequency lifting with minimum manual intervention.

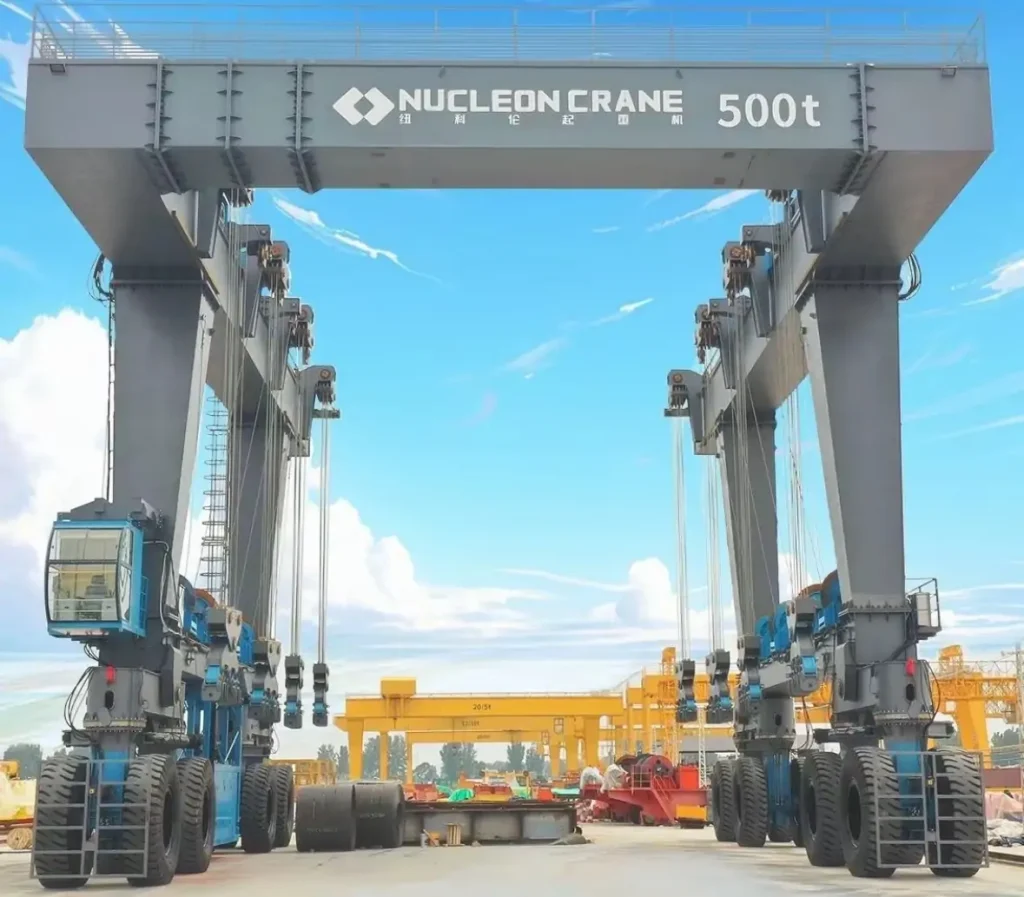

500 Ton Marine Travel Lift Exported to Malaysia (1)

Technical Specifications

ParameterValue
Lifting Capacity500 tons
Inner Width10 meters
Lifting Height9 meters
Wheel Configuration16 PU-coated rubber tires
Power Supply380V, 50Hz, 3 Phase (customized)
Drive ModeDiesel-electric hybrid
Control SystemWireless remote + cabin control

Features

  • Customizable lifting straps: designed to adapt to different hull shapes, reducing stress on the vessel's surface.
  • Independent wheel steering: 360-degree steering capability for maneuverability in confined spaces.
  • Synchronized lifting system: Ensures stable lifting and precise balancing even during heavy-duty operations.
  • Anti-corrosion treatment: All structural steel components are sandblasted and coated with marine-grade epoxy paint.
  • Remote Monitoring Option: Real-time data tracking and maintenance alerts via a digital control platform.

Factory Test Video

Before shipment, this 500-ton travel lift gantry crane underwent rigorous no-load and operational stability testing at our factory. See the video below for details:

Conclusion

The boat lift gantry crane has now been dismantled and shipped to Malaysia and is expected to arrive in two weeks. We will be providing installation and maintenance instructions to help the customer get it up and running as soon as possible. Contact us for customized solutions from 100 to 1200 tons.
